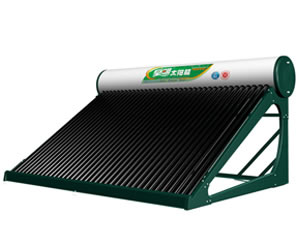

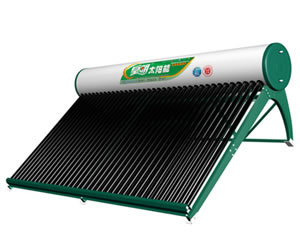

Description of Solar Water Heater HM210:
The evacuated tube maintains its high efficiency over a wide range of ambient temperatures and heating requirements. It can efficiently absorb diffuse solar radiation present in cloudy conditions.
Technical parameters of Solar Water Heater HM210:
| Parameters\\Model | Vacuum tube quantity (pcs) | Heat collecting area(㎡) | Volume (L) |
Inner tank material | Shell material | Frame material | Heat preservation layer material | Dimension(mm) | Gross weight (KG) |
| L×W×H | |||||||||
| HM—14TT21/φ58 | 14 | 2.18 | 150 | SUS304 | Galvanized sheet | Galvanized sheet | Polyurethane | 33°:1340×2190×1585 | 305 |
| 45°:1300×1720×2090 | |||||||||
| 50°:1340×1720×2090 | |||||||||
| HM—16TT21/φ58 | 16 | 2.50 | 170 | 33°:1500×2190×1585 | 340 | ||||
| 45°:1460×2170×1275 | |||||||||
| 50°:1500×1720×2090 | |||||||||
| HM—18TT21/φ58 | 18 | 2.81 | 195 | 33°:1660×2190×1585 | 385 | ||||
| 45°:1620×2170×1275 | |||||||||
| 50°:1660×1720×2090 | |||||||||
| HM—20TT21/φ58 | 20 | 3.13 | 215 | 33°:1820×2190×1585 | 425 | ||||
| 45°:1780×2170×1275 | |||||||||
| 50°:1820×1720×2090 | |||||||||
| HM—24TT21/φ58 | 24 | 3.77 | 260 | 33°:2140×2190×1585 | 490 | ||||
| 45°:2100×2170×1275 | |||||||||
| 50°:2140×1720×2090 | |||||||||
| HM—28TT21/φ58 | 28 | 4.40 | 300 | 33°:2460×2190×1585 | 550 | ||||
| 45°:2420×2170×1275 | |||||||||
| 50°:2460×1720×2090 | |||||||||
| HM—36TT21/φ58 | 36 | 5.67 | 385 | 33°:3100×2190×1585 | 650 | ||||
| 45°:3060×2170×1275 | |||||||||
| 50°:3100×1720×2090 |
