LED A. Adopt built-in 1W high power LED as light source, single color and RGB

type, can emit excellent light effects and magnificent colors.

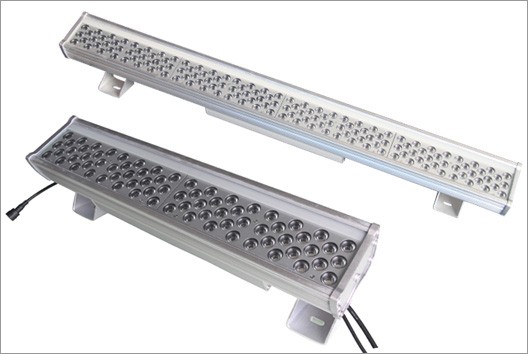

B. This new type Wall washer made up of two parts, first part is light body and the other one includes power supply and controller box, which makes this wall washer different with other wall washers.

C. It has lighter weight, safe and stable quality and it is easy for maintenance. The unique isolated module design makes better waterproof, longer lifespan, and better heat dissipation, easier control.

D. Hand in hand connection among lights, signals, power supply, makes easier installation, more conveniently connection..

E, There are 14 kinds of build-in programs which can be operated at the DMX window. This wall washer can also be controlled by outside DMX 512 controller or super DMX Console to achieve more different lighting effects. It can achieve whole or isolated light effect control.

It can be widely used for all kinds of wall lighting decoration, as well as in stage, meeting room, ancient building crowd, and civilization plaza etc.

●"L 1" stands for the whole length of wall washer

0.6 m wall washer:L1= 614mm , 0.9 m wall washer :L1= 914mm , 1.2m wall washer :L1= 1214mm

● "L 2" stands for the length between the middle of two location brackets

0.6 m wall washer:L1= 512 mm , 0.9 m wall washer :L1= 682 mm , 1.2m wall washer:L1= 962mm

1. single color wall washer, can be lighted up with power on

2. The connection way of RGB colors, as follows: Remark: Each line, the total of wall washer can not exceed of 30 pcs.
