Raymond Yu-cyclone winds from the small, into the atmospheric concentration of dust will be as high as 1,000 milligrams, than the state emission standards several times higher than the first 100 times. A lot of dust into the atmosphere, causing the plant seriously polluted the surrounding environment. As China's environmental protection laws enacted and implemented, the use of the milling machine manufacturers are eager to thoroughly resolve this issue, so as to achieve Consumers gray dust clean environment, and its neighbors to improve the relationship between.
However, Mill has nearly 100 kinds of raw materials this, its viscosity, water and other various physical and chemical properties not the same, and the mill after the finished product very fine particle size, coupled with cold, rainy season, and other complex environment Factors, so I wind dust a long time can not be solved.
Pulse bag filter and Raymond Chen Shui-bian of supporting the use of effective after the dust settled more than the wind, their efficiency is 99 percent.
ESP process:

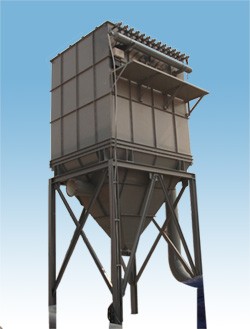

Pulse dust collector from the bag filter system, electronic control box, pipe fittings and fan components.
When the fan is turned on, the dust collector will be in a state of negative pressure, and winds of more than dust in the air to the inhalation of dust collector on the Xiang Tinei, and then flow into the filter bag missing you flow from top to bottom, the majority of dust particles in gravity and The role of inertia force under Chuanchu filter bag under the mouth, the settlement to the next Xiang Tinei (ash bucket), the gas purification filter fan into the atmosphere.
In the air filter at the same time, there are still some dust in the filter bag inside wall of guitar delay, and gradually thickening, this dust collector resistance is gradually increasing, the ability to deal with the wind a result of weakening, filter bag on the need to timely cleaning, -- The role of controller, every time start cleaning valve, cleaning briefing in anti-state, filter bag lateral pressure from negative pressure to transform, filter bag shape this change, stagnation in the end The dust filter bag wall, with the filter bag of deformation and fragmentation, dust from the bag to the whereabouts of the ash bucket.
ESP features:
1, collection efficiency, emissions concentration lower than the
national standard.
2, regardless of under what conditions, as long as the milling
machine to normal production, the matching is dedicated dust
collector and will also be able to use.
3, removed from the original small cyclone, with the special dust
collector, the implementation of a dust, facilitate the workshop
layout.
4, cleaning low energy-consuming devices, power consumption is less
than 0.1 per hour / degrees.
5, minor maintenance workload.
6, Po Toi long life, the replacement of easy and convenient.
7, Mill-if the hot air Jianzuo dry, dust collector can still be used
in this series.
8, the winter will not be condensation phenomenon.
9, after the recovery of ultra-fine powder of the synergistic
value-added features.
Item
|
Parameters
|
Model of pulverizer
|
3R2714
|
4R3216
|
5R4119
|
Model of the DustRemver System
|
R3
|
R4
|
R5
|
Disposal of Phoenix Quantity (M3/h)
|
1120-5600
|
1800-9360
|
4000-20000
|
Resistance (mm Water Cloumn)
|
80-300
|
Filter Area(m2)
|
39
|
66
|
140
|
Amount of filter bag
|
24
|
40
|
72
|
Dust Removing Efficiency(%)
|
> 99.5
|
Valume of Dust funnel
|
1
|
1.5
|
2.6
|
Weight of Dust Remover(t)
|
2
|
2.5
|
4
|
air-blower
|
Model
|
4-72-11No.4A
|
4-72-11No4.5A
|
4-72-11No.5A
|
Power(kw)
|
5.5
|
7.5
|
15
|
Roate.speed(r/min)
|
2900
|
