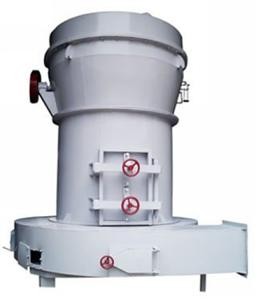

High Pressure Suspension Grinding Mill Stock Description:
This High Pressure Suspension Grinding Mill is suitable for grinding gypsum talc calcite limestone marble feldspar barite dolomite granite ceramic kaolin bauxite etc. Mohs hardness is not greater than 9.3 and humidity below 6% of non-flammable and explosive materials. The device is applicable to mining, metallurgy, chemicals, building materials and other industries more than 280 kinds of materials processing of the high-fine flour, refined grain size in the range of 80-1310 mesh adjustment (the most detailed up to 2000 mesh). Through the machine to increase the special devices, can produce a 10-80 mesh meal.

High Pressure Suspension Grinding Mill Stock Work Principle:
In the High Pressure Suspension Grinding Mill's mainframe ,the 1000-1500 KGof high pressure springs are fastened on the roller hanger,After beginning work,the rollers rotate around the spindle,under the high pressure spring and centrifugal force,rollers rotate closely to the grinding ring.It's rotated pressure is 1.2 times than the Raymond Mill under the same conditions,and therefore greatly enhance the production.The scraper knife scoop up the raw materials into the gap between the roller and ring. Circulating air blower returns to repeat the above procedure, then enter the bag filter air purification. When the grinding roller and grinding ring reaches a certain worn, adjust the length of high-pressure spring to keep grinding roller and grinding ring between the constant grinding pressure. In order to ensure a stable output and fineness.
