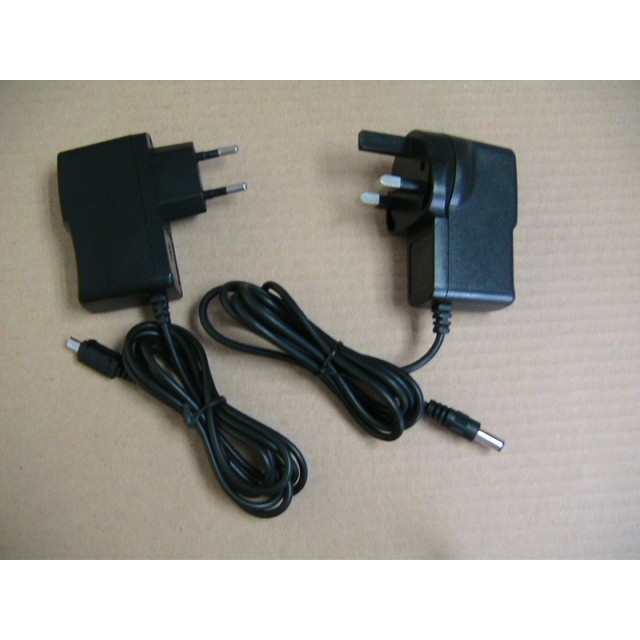

AC/DC Adapters with 1A Maximum Input Current |
|
Key Specifications/Special Features:
- Features:
- AC input voltage: 100 to 240V AC, 50 to 60Hz
- Input current: 1.0A maximum
- Rating output voltages: 5.0 to 30.0V DC
- Rating output current: 0.1 to 3.0A
- Ripple and noise: less than 120mVp-p
- Standby power consumption: 0.3W (at 240V AC)
- Dimension: 80 x 36 x 52mm
- Protections:
- Short-protection: less than 3.0W
- Over-current protection
- Over-voltage protection
- Safety standards:
- EN60950-1
- UL60950-1
- ESD (EN61000-3-3)
- CSA (60950 ITE/TE)
- FCC part 15 subpart B Class B
- AN/NZS CISPR 22:2006
- With CE, EMC, LVD, UL, FCC, TUV-GS, CB, C-tick, CEC and RoHS approvals
- Warranty: 13 months
|
