LENS

3.6mm standard, 6mm&8mm optional

Horizontal
resolution

1/3  SONYSUPER HAD CCD. 420TVL,480TVL,  optional

illumination

0.1LUX

LENS Mount

Φ8x10

Gross weight

0.18kg

Key features

Scanning System:   PAL/NTSC
S/N Ratio:   ≥48dB
Video Output: 1.0Vp-p/75Ω
AGC:  Auto
White Balance: Auto
Backlight Compensation: Auto
Exposure Mode:  EE
Electronic Shutter:  1/50(1/60)--1/100000sec
Gamma Correction: 0.45
Sync.System: Internal Synchronizati
Power Supply: DC12V±5%, 1000mA
Operation Temperature: -20°C--50°C less than 90%RH

Location
Application

24 hours monitoring  applicable to indoor area, such as hotel, office,
 barback and  hospital etc.

Advantage

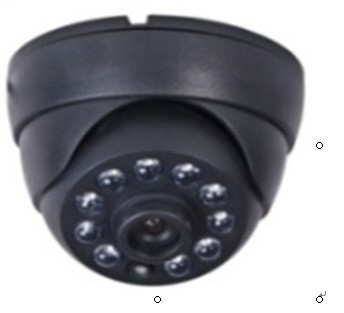

Most well-received Dome camera, Simple structure,
easily for installation and upgrade
