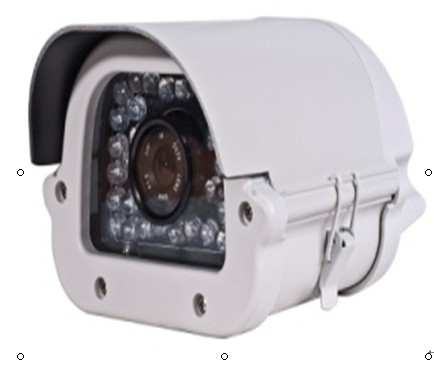

540TVL IR Waterproof Integrated Monitor,
Model No.: PUB-LO122
60~80m IR Waterproof Integrated Monitor
LENS
12mm standard, 6mm&8mm&16mm&25mm optional
Horizontal
resolution
1/3 SONYSUPER HAD CCD. 420TVL,480TVL, 540TVL optional
illumination
0.1LUX
LENS Mount
Φ8×35
Gross weight
0.77kg
Key features
Scanning System: PAL/NTSC
S/N Ratio: ≥48dB
Video Output: 1.0Vp-p/75Ω
AGC: Auto
White Balance: Auto
Backlight Compensation: Auto
Exposure Mode: EE
Electronic Shutter: 1/50(1/60)--1/100000sec
Gamma Correction: 0.45
Sync.System: Internal Synchronizati
IR View Distance: 60~80m
Power Supply: DC12V±5%, 1000mA
Operation Temperature: -20℃--50℃ less than 90%RH
Location
Application
Applicable to highway monitoring and engineering surveillance etc.
Advantage
Unique double layer toughened glass design, effective on fog and water resistant,well received model, easily for installlation and upgrade
