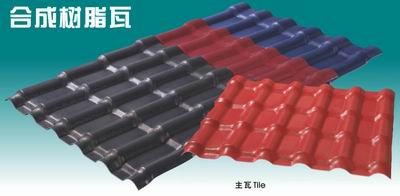

Synthetic Resin Tile Introduction

Specification of synthetic resin tile:

Thickness: 3.0mm

Length:According to a multiple of pitch tailor-made

Colour: purplish red, brick red, gray, blue, green

Waveform: width:880mm;      Effective width: 800mm

          width:1050mm;      Effective width: 960mm

Pitch of wave: 160mm

Height of wave: 30mm

Height of pitch: 220mm

Scope of synthetic resin tile:

Mainly applies on the flat-to-sloping roof, villa, garden, attic and so on

Synthetic Resin Tile Installation

Installation Notes:

★Purline can choose square tube (60 × 40 × 3 mm) or C-type steel (100 × 50 × 20 × 3 mm) or anti-corrosion wooden (60 × 40 mm).;
★Purline spacing is 660 mm, arranged from bottom to up;
★When main tile installed in accordance with local wind direction, reverse to install. Overlap a vapor, on both sides at the same time;
★Installing the main ridge tile is after cutting one section from the first ridge tile;
★Positive, oblique ridge tile installation lap department should saw in line, install three-way tile is after installing positive, oblique ridge, fixed pieces is dedicated accessories. As fixing, firstly is use electric drill to drill, large diameter than the screw hook screw 2 mm;
★Suggest to select self-tapping screw of diameter is 6.3 mm;
★Aspects of the installation details, please obtain a copy of our installation manual.
