Hydraulic and electric control as the basis for the direction of molding machinery, mechanical, electrical, hydraulic Trinity

Ths series of hydraulic press is one new model designed and introduced according to special processing technique of automobile parts & components. At the same time, it is also applicable for pressure molding or light stretching in many industries of clock, electronic appliance and artworks.

 a. Equip with upper backpressure cylinder and bottom fixed table to ensure the accuracy during pressing the products;

 b. Advanced design, beautiful appearance, fast speed and convenient operation;

c. Durable import hydraulic elements;

d. PLC control can ensure sensitivity and precision of control.

e.Equip with safety light curtain and over-travel protection function. Master cylinder possesses the function of abnormal descending automatic return due to seizing of valve or other reasons so as to strengthen the security of the machine.

f.Piston rod and column surface are treated by means of high frequency quenching and hard chromium plating so that they possess good abrasive resistance.

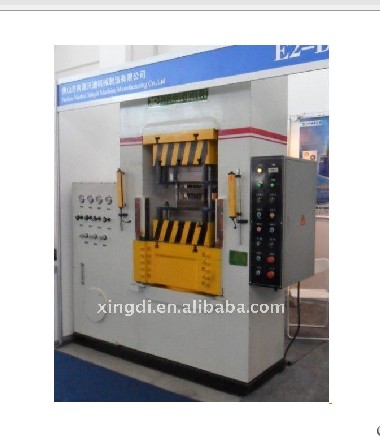

YDK series fine blanking press
Item units YDK-200 YDK-300S YDK-500
Nominal Force KN 2000 3000 5000
Max .pressure of liquid MPa 20 20 25
Return Capacity KN 100 125 150
Max. Stroke of Ram mm 300 350 350
Up Blank holder force KN 1000 1000 1500
Stroke of Up Bland-holder slide mm 35 25 25
Low Blank holder force KN 100 1000 1500
Stroke of Low Bland-holder slide mm 35 25 25
Open Height Max. mm 800 800 850
Shut Height mm 500 450 500
Speed of Ram Up mm/s 175 130(Down) 200
Closing mm/s 6--15 15 4--10
Return mm/s 165 120 180
Motor Output KW 18.5 7.5 22
Bed Area(RLXFB) mm 690×600 700×700 800×800
