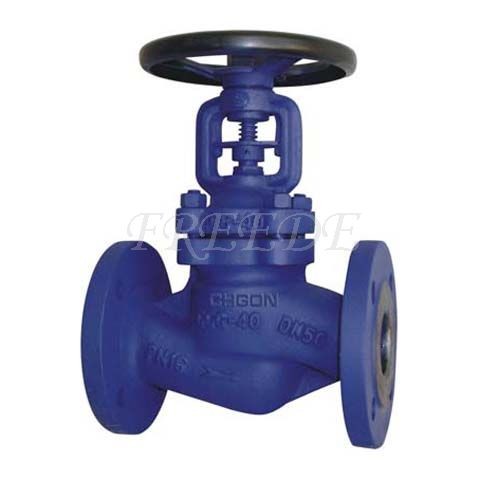

DIN Cast Steel Bellows Seal Globe Valve Characteristics and Design Description: S Pattern Body Design, OS&Y, Outside Screw and York, BB Bolted Bonnet, Yoke Integral with Bonnet, Yoke Integral with Bonnet, Loose Disc, Choice of Plug or Ball, Horizontal Service, renewable seat rings, Rising stem, Available with BG Operator. Applicable Standards:
Design and Manufacture: DIN3356 Face to Face: DIN3202 Flange Ends Dimensions: DIN2543, DIN2544, DIN2545, DIN2546, DIN2547, DIN2548 Inspection and Test: DIN3230 Connection: Flange Pressure Rating: PN16-PN40 Size: 15-300MM Body Material: DIN 17245 GS-C25+CR13, ASTM A216 WCB, A351 CF8, A351 CF8M, etc. Operated Manner: Handwheel, Bevel Gear, Electric Actuator, Pneumatic Actuator, etc.
