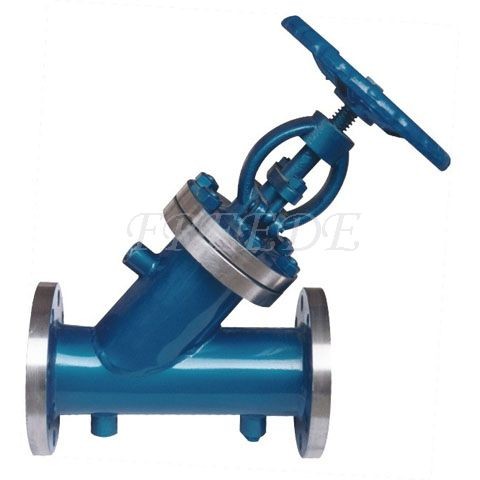

Detailed Download Description:Y Type Cast Steel Globe Valve
ANSI Bolted Bonnet Cast Steel Globe Valve Characteristics and Design Description: Y Pattern Body Design, OS&Y, Outside Screw and York, BB Bolted Bonnet, Yoke Integral with Bonnet, Yoke Integral with Bonnet, Loose Disc, Choice of Plug or Ball, Horizontal Service, renewable seat rings, Rising stem, Available with BG Operator. Applicable Standards: Steel Globe Valve: BS1873 Steel Valves: ASME B16.34 Face to Face: ASME B16.10
End flanges: ASME B16.5 Buttwelding Ends: ASME B16.25
Inspection and Test: API598 Connection: Butt Welding, Flange Pressure Rating:Class 150LB-2500LB Size: 2-18" Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M etc. Operated Manner: Handwheel, Bevel Gear, Electric Actuator, Pneumatic Actuator, etc.
