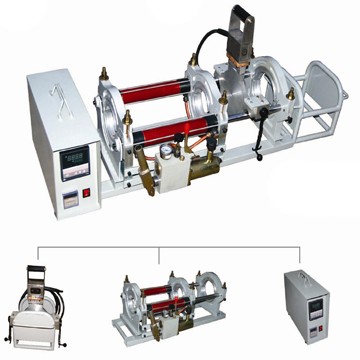

Hydraulic Holding Welding Machine with 2.0kW Total Power

It is mainly used on bi diameter PPR pipes and other kinds of pipes for holding connection with following characteristics.

The center face of the pipes and fittings that are held, the hydraulic pressure face of the machine frame and the center face of the heated die mould are in the same surface, that will be average pressed when welding.

The hydraulic press by manual is slow and steady, it can be controlled and make the speed at what you need when welding and holding.

The apparatus and instrument are installed in a safety place where it is not possible to be touched so as to greatly reduce the fault for the machine

Diameter application(mm): 160,140,125,110,90,75

Power supply(single phase)(V): 220

Total power(Kw): 2.0

Heating plate temperature(°C): 65
Surface temperature difference of heating plate(°C):+5/-5

Machine weight(Kg):50~300

Many more types are supplied.

Our factory is the only factory availabe in China to have the following abilities:
Under D 630mm, it is possible to use welding machines by single-phase power supply

Hydraulic welding machines by manual

Hydraulic holding welding machines by manual
Long life, non-touch point welding machine

So far as yet, we have achieved multi national invention patents, and we got ISO9001:2000 quality system certificate
