Product Name

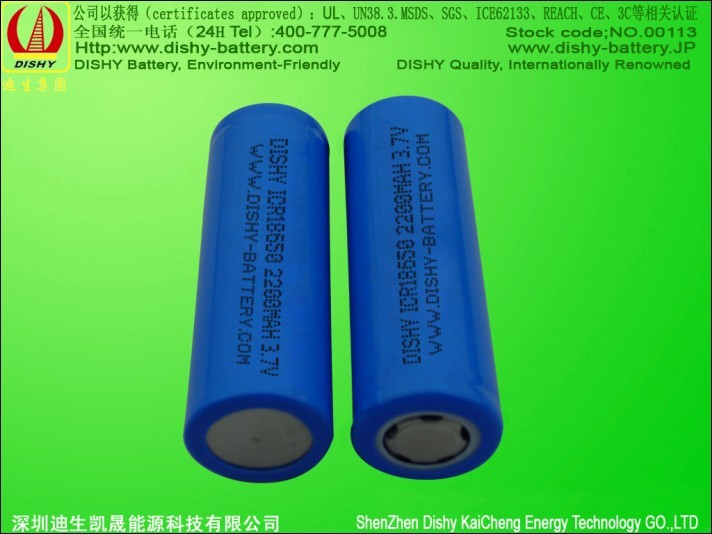

3.7V 18650 2200mah lithium battery
Product details
Place of Origin Guangdong, China (Mainland)
Brand Name: Dishy
Model No.: 18650-2200
Type: Li-Ion
certificates: SGS,UL,CE,ROHS,MSDS
Color: Black/White
shelf life: 2 years
MOQ 5000 Piece/Pieces
Port: Shenzhen
Payment terms: L/C, T/T, Western Union, MoneyGram
price: Factory price
Warranty: 1 year
Specifications
Model No.: 18650-2200mAh
Nominal Voltage: 3.70V
Rated Capacity: 2200mAh
Min.capacit(0.2 C5A,430)mA: 2150mAh
Max. Charge Voltage: 4.20 V
Discharge Cut-off Voltage: 2.75V
Max. Charge Current: 5A
Max. Discharge Current: 5A
Max. Diameter: 18.3mm
Max.Height: 65.3mm
Weight (Approx.):45.0g
Impedance(Max. at 1000Hz.): 60mΩ(charged status)
Charge Method(CC/CV): ①Standard: 1C×7.5hrs ②Quick: 5C×2.5hrs
rapid charge-discharge cycle life up to more than 500 times.
work temperature:-15+50℃
storage temperature:less than 45℃
Features:
· High capacity
· Excellent safety performance
· Excellent storage performance and low self-discharge rate
· short circuit test passed
· 150C thermal shock test passed
· 1.2m drop test passed
· Cycle life: 500 times
· Charging temperature: 0 to 45 degree Celsius
· Discharging temperature: -20 to 60 degree Celsius
· Storage temperature: -20 to 45 degree Celsius

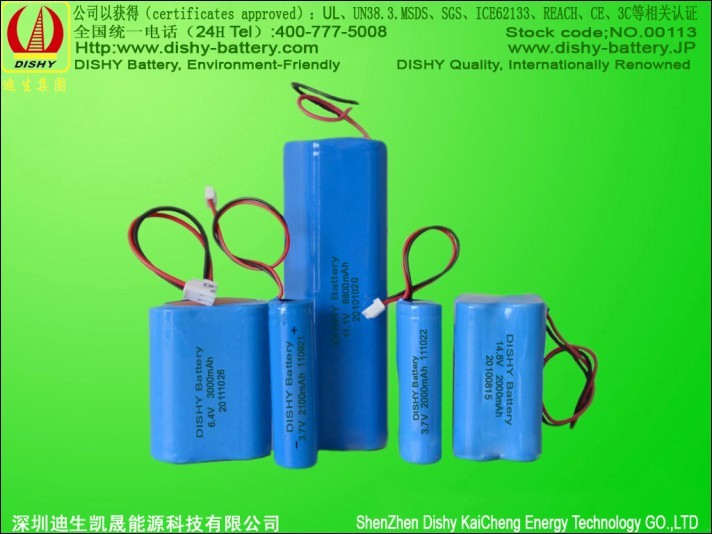

· PCB and battery pack available

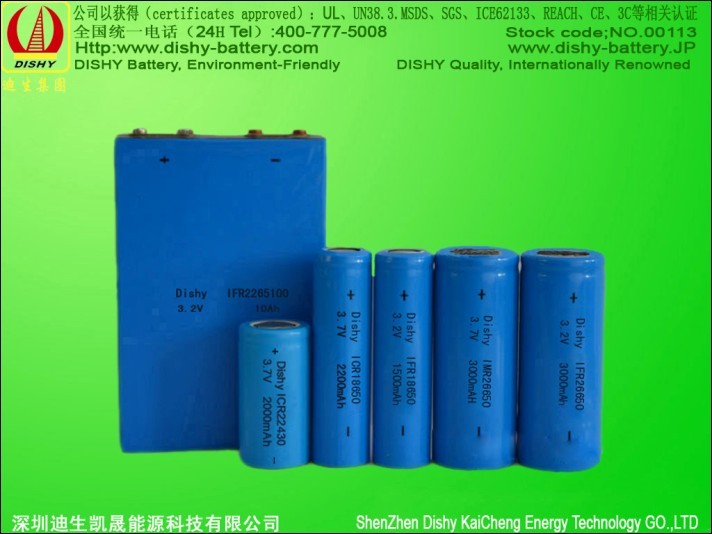

· Other sizes and capacities we can all accommodate
· Approved by CE, UL,SGS,MSDS and RoHS
· ODM/OEM service provided
Packing & Delivery
Packing details: CTNS suitable for long distance transportation.we can also pack as your require.
Delivery time: 3-15 days after your confirmation
We have many kinds of this batery,if you have any requirements,feel free to let us know!
If you want to get more information,please contact with us.
