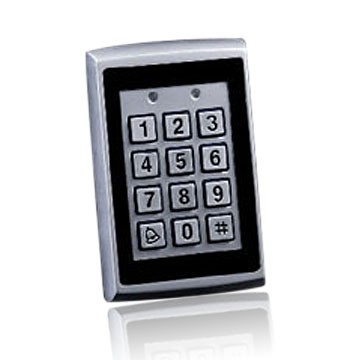

SA-0103 Waterproof Access Controller Keypad
Specification:
Dimensions: 120Lx76Dx27W(mm)
Operating Voltage: 12VDC
Current Drain: <90mA
Card Reading Distance: Max Distance 6.5cm
Type of Card: EM card,125KHZ
4-Operation Mode: 4 number code Operation(Support 500 users),
4 number code +4 number code Operation,
4 number code+Card ,
Card+Card Operation
Operating Temperature: -20℃-60℃
Operating Humidity: 10%-90%
Simple Programming, Easy Operation
Adopt function steady card reader of blocks
Keypad Locks for 30 Seconds After 10 False Entries
Can be Connected with Door-open Button and Doorbell
Non-volatile Memory in Power Failure
Tamper Switch can be Connected to Security Alarm System
Weight: 0.41kg
Standard Packing: 25pcs/box
|
|
|
Access Control Installation Diagram for Magnetic lock Mode of Entering or Exiting door: |
