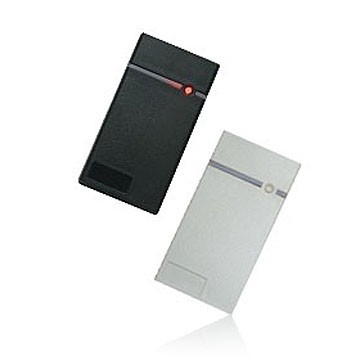

PCD-96 Proximity Card Reader

PCD-96 Proximity Card Reader

Card Type: EM-ID Card /125KHz(Mifare format /13.56MHz is option

When the card approach the reader, the red light turn into green, after glinting to turn red color again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data.

 Size: 80 x 43x 16mm

Color: Black / White

Voltage: DC5~16V

Current: ≤100mA

Ambient Temperature: -25℃~75℃

Reading Range: 5~15CM

Output Format :Wiegand 26/34,RS485/232

Card Type:EM-ID/Mifare-IC

Communication Distance:WG≤100M,RS485≤1200M
