@ Identification methods include Face, Fingerprint/RFID and/or Password
@ Elegant ergonomic design
@ 4.3'' TFT touch screen is user-friendly and very intuitive
@ 6 user-defined function keys
@ Contact relays for door access control (wires to door strike or 3rd party panel)
@ Web server management software via IE browser.
@ Extendable scheduled-bell
@ Infra-red optical system enables user-identification in poorly lit environments
@ Optional built-in battery backup provides approx 4 hours continuous operation.
@ Optional built-in wireless Wi-Fi or GPRS for wireless communication.
@ Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
@ Wiegand Output for connections to 3rd party access control panels

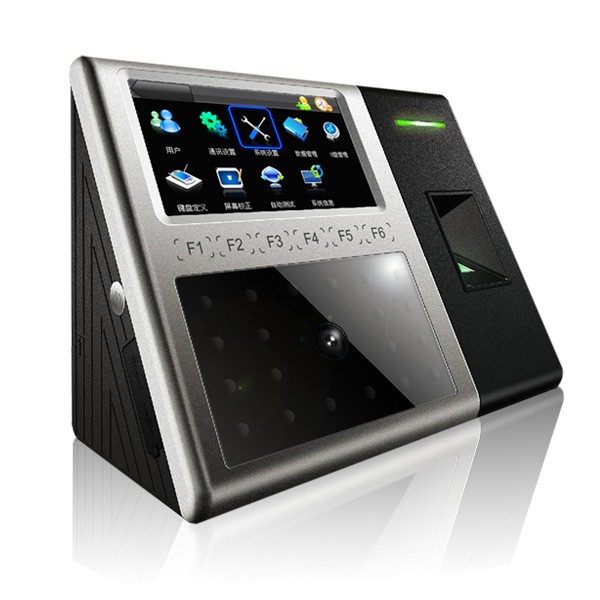

Model

CRT-T12

CPU

ZK Multi-Bio CPU 630 MHz

Memory

256M Flash, 64M SDRAM

Hardware Platform

ZEM600 Multi-Medium Development Platform

Fingerprint Sensor

None

Camera

High Resolution Infrared Camera

Display

4.3'' TFT touch screen

Face capacity

700

Fingerprint capacity

none

ID Card capacity

10,000

Logs capacity

100,000

Algorithm Version

ZK Face 5.0

2000mAh backup battery

Optional

Communication

TCP/IP,RS232/485

USB-HOST

Two USB-Host

Wireless Wi-Fi

Optional

Time attendance functions

Extendable Scheduled-bell, DLST, Self-Inquiry, Work Code, Short Massage, T9 input, Webserver

Access control interfaces for

3rd party electric lock, door sensor, exit button

Wiegand Signal

Output

Optional functions

GPRS, serial printer, Mifare card, built-in POE

Power supply

12V3A

Verification Speed

≤2 sec

Operating temp

0℃- 45 ℃

Operating Humidity

20%-80%
