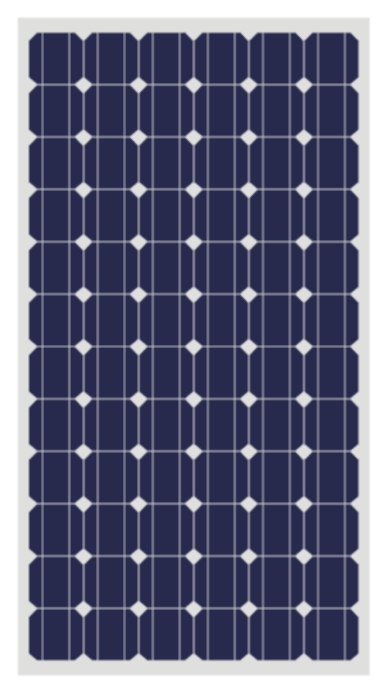

230W Solar Panel
1. 5 yrs Quality Warranty;
2. CE Certification;
3. High efficency Solar Cells, 17%;
4. Assured Life Span: 25 yrs
Performance Assurance
1) 3 years warranty for PV module, materials and corresponding fittings;
2) 90% output of rated power after 10 years;
3) 80% output of rated power after 25 years under Standard Test Conditions
Type |
SD-230W |
|
Silicon Parameters |
Poly-crystalline silicon |
|
Maximum Power |
Watt |
230W |
Production Tolerance |
|
+/-3% |
Maximum Power voltage |
V |
28.4 |
Maximum Power current |
A |
8.1 |
Open circuit voltage |
V |
35.6 |
Short circuit current |
A |
8.75 |
Size of module (wide and high) |
1643mm *987mm |
|
Frame (type, material and thickness) |
Anodized Alu. Alloy frame,50mm thickness |
|
Number of cells |
60pcs |
|
Size of cells (wide and high) |
156mm*156mm |
|
Weight per piece (Kg) |
19 |
|
Type of junction box |
PV junction box |
|
Cable type and length, Connector type |
PV cable, 0.8m Plug and socket |
|
Maximum system voltage |
1000V |
|
Temperature coefficient of Isc |
+0.05% per degree |
|
Temperature coefficient of Voc |
-0.34% per degree |
|
Temperature coefficient of power |
-0.45% per degree |
|
Temperature coefficient of Im |
+0.05% per degree |
|
Temperature coefficient of Vm |
-0.34% per degree |
|
NOCT (Nominal operating cell temperature) |
47 degree(+/-2) |
|
Insulation |
>=100 M |
|
Voltage Standoff |
AC2000V, DC3000V |
|
Wind Bearing |
60m/s (200kg/sq.m) |
|
Impact Resistance Hail Impact Test |
227g steel ball fall down from 1m height |
|
Converslon efficiency |
Cell converslon efficiency >15.7% |
|
Quality guarantee |
5 years product warranty and 25 years -20% of power |
