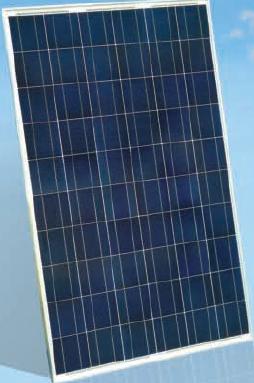

ITEM NO

SD-190W

Cell Type

Mono-crystalline Silicon Solar cells

Maximum power (Wp)

190wp

Maximum power voltage (V)

36V.

Maximum power current (A)

5.28A

Open circuit voltage (V)

43.2V

Short circuit current (A)

5. 91A

Number of cells (Pcs)

72(6*12) PCS

Size of module (mm)

1580*808*35mm( 125*125mm cell)

Temperature Range

-40 ~+85 degree

NOVT(Nominal Operating Cell Temperature)

47 degree(+/-2)

Voltage temperature coefficient (VOC)

-0.35% per degree

Current temperature coefficient(ISC)

+0.04% per degree

Power temperature coefficient (Pmmp)

-0.5% per degree

Maximum system voltage (V)

1000V

Surface Maximum Load Capacity

60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Certificates

TUV,IEC,CE,ISO,CQC

Output tolerance (%)

+/-3%

Weight per piece (kg)

15.5KG

Glass Type

Tempered Glass

Junction Box Type

Passed the TUV certified

Length of Cables (mm)

900mm

Connector Type

MC4

Backside Foil Type

PVDF-W250 (0.349)

Frame (Material, Corners, etc.)

Aluminum

Cell Efficiency (%)

>17.8%

Module Efficiency (%)

>17.6%

FF (%)

77%

Standard Test Conditions

AM1.5 100mW/cm2 25 degree

Warranty

5 years product warranty and 10years 90% of power ,20years 80% of power;
