flexible solar panel,solar module

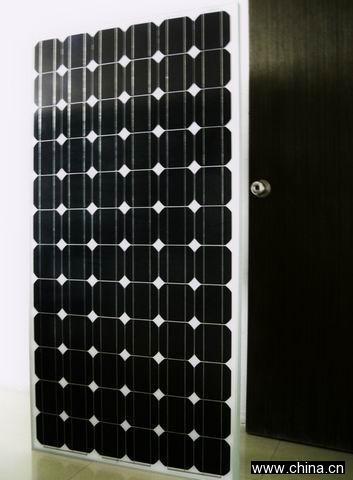

185 watt monocrystalline solar panel
1)PV Solar panel
2)monocrystalline solar panel module
3)Cell: Mono-crystalline 125 *125mm
4)No.of cells: 72(6 * 12)
5)Dimension :1580 *808 *35MM
flexible solar panel specification:
Model |
SD-185W |
Rated power (Pm) |
185W |
Cells |
Monocrystallinee 125*125 MM |
Number of cells |
72(6*12) series connected |
Size |
1580mm*808mm*35mm |
Weight |
15 Kg |
Typical application |
24V DC |
Maximum voltage |
1000V DC |
Operating temperature |
45 degree |
Hail diameter @ 80Km/h |
Up to 25 mm |
Continuous wind pressure |
Up to 24 m/s |
Efficiency of cell |
17% |
Tolerance |
+/-3% |
Rated current (Im) |
5.14A |
Rated voltage(Vm) |
36V |
Short circuit Current(Isc) |
5.76A |
Open circuit Voltage(Voc) |
43.20V |
