panel solar,solar panel price,solar panel,solar module

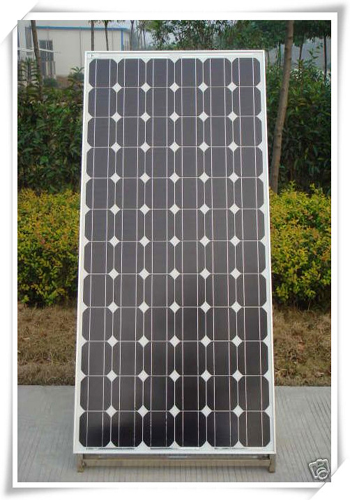

155 watt monocrystalline panel solar
1)PV Solar panel price
2)monocrystalline panel solar
3)Cell: Mono-crystalline 125*125mm
4)No.of cells: 72(6*12)
5)Dimension :1580*808*40mm
specification of 155W solar panel price:
MONO or POLY |
Mono Mono Mono |
Maximum power (Wp) |
160wp 155wp 150Wp |
Maximum power voltage (V) |
36 36 36 |
Maximum power current (A) |
4.45 4.3 4.2 |
Open circuit voltage (V) |
43.2 43.2 43.2 |
Short circuit current (A) |
4.8 4.72 4.64 |
Number of cells (Pcs) |
72 |
Size of module (mm) |
1580*808*40mm( 125*125mm cell) |
Brand Name of Solar Cells |
CEEG |
Maximum system voltage (V) |
960 |
Temperature coefficients of Isc (%) |
0.065+/-0.015%/ |
Temperature coefficients of Voc (%) |
-2.23+/-0.1mv/ |
Temperature coefficients of Pm (%) |
-0.5+/-0.05%/ |
Temperature coefficients of Im (%) |
+0.1/ |
Temperature coefficients of Vm (%) |
-0.38/ |
|
-40+80 |
Tolerance Wattage (e.g. +/-5%) |
+/-5% |
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
Allowable Hail Load |
steel ball fall down from 1m height |
Weight per piece (kg) |
15 |
Junction Box Type |
GY-BOX-5C( TUV ) |
Length of Cables (mm) |
900mm |
Cell Efficiency (%) |
16.25% |
Module Efficiency (%) |
14.4% |
Output tolerance (%) |
+/-5% |
Frame (Material, Corners, etc.) |
Aluminum |
Standard Test Conditions |
AM1.5 100mW/cm2 25C |
Warranty |
2 years product warranty and 25 years 80% of power |
FF (%) |
73% |
Packing |
2PCS/CTN,532PCS/228CTN/40/20FCL |
