Flexible solar panel
1)Max. power:150W
2)Material:Mono Silicon
3)Cert.:CE,TUV,UL
4)Warranty:10years of 90%,20years of 80%

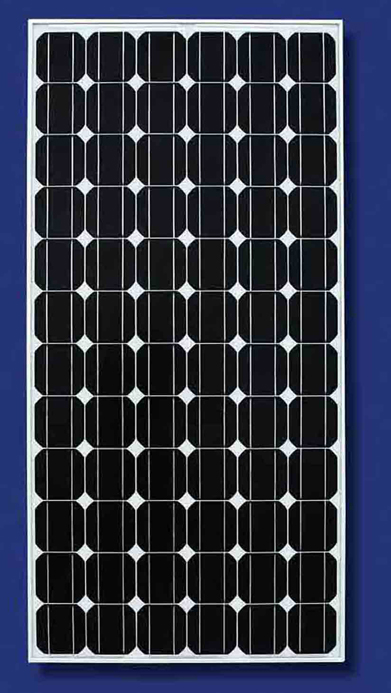

150 watt monocrystalline flexible solar panel
1)PV Solar panel
2)monocrystalline solar panel module
3)Cell: Mono-crystalline 125 X 125mm
4)No.of cells: 72(6 X 12)
5)Dimension :1580*808*46 mm
Model |
SD-150 |
Pmax |
150W |
power tolerance: |
+/-3% |
Vmp |
35.1V |
Imp |
4.70A |
Voc |
42.5V |
Isc |
5.0A |
Pcs |
72(6*12) |
Cell Type |
125*125 monocrystalline solar cell |
Size |
1580*808*46 mm |
Net weight |
15.6kg |
STC |
1000W/m2,AM 1.5,25 oC |
Warranty |
3 year warranty for products,10 years for 90% power ,20years for 80% power |
Accessory |
3.2mm thick tempered glass,aluminium frame |
Others |
There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework |
