Size: 3"-48" (DN80-DN1200)
Pressure: ANSI 150LB-600LB(PN16-PN100)
Material: Carbon Steel, Stainless Steel, Super Duplex Stainless Steel,
Special Alloy (Monel, Inconel, etc.)
Design & Manufacture Std.: API609, MSS SP-67, MSS SP-68, BS5155
Face to Face Std.: API609, MSS SP-67, MSS SP-68, BS5155
End Connection Std.: ASME B 16.5, DIN2543-2545
Test Standard: ISO5208, BS6755

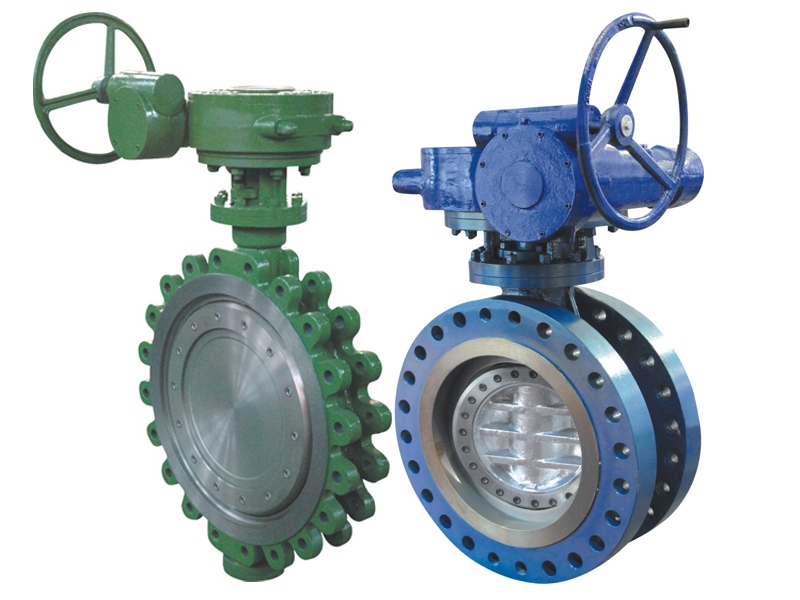

Construction Type: Tri-Eccentric
Operation: Lever, Gear, Pneumatic, Electric
