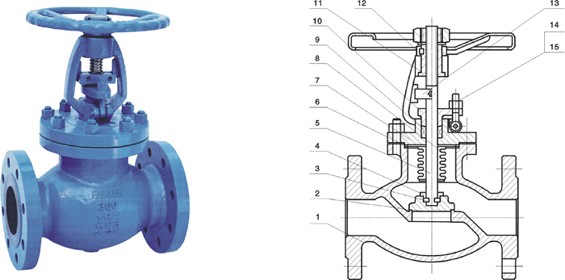

Name:Bellow Globe Valve

Product structural features
Stop valve with bellow sealacc.to ANSI is applicable to the cutting and connection of pipelines medium that are used in various inductries such as peroleum,chemical industry,pharmacy,chemical fertilizer,electric power industry etc under nominal pressure of CLASS150-900LBS and working temperature of 29~350?

Main structural fealtures

1.This product has logical structure,reliable seal,excellent performance and nice design.

2.The seal surface is build-up welding with Co hard alloy,which is attrition-resistant,corrosion-resistant,has good friction resistant and long life.

3.The stem is quenched and tempered, and its surface is steated by nitriding steatment,thus it has good corrosion resistant and friction resistant.

4.It has double seal capability,thus is more reliable.

5.The stem may show the position of lift,thus it is clearer.

6.The part material,flange and butt weld end dimension may be selected according to current operating condition and users'requirement,so that meet the requirements of various engineering.
