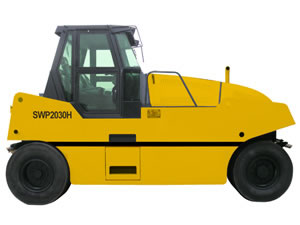

Tire Roller SWP2030

Products Visitors:1322
  • Product Name:Tire Roller SWP2030
  • Model:SWP2030

SWP2030 Pneumatic Tire Roller (Mechanical Transmission)

Main Specifications

Model 6BTA5.9
Power rate 125 KW
Rated speed 2000rpm
Type Vertical  water cooling  four stroke
direct injection
Rated fuel consumption 200 g/kw·h
Traveling performance
Grade ability 20%
Traveling speed (km/h)
Forward I 4.8
Forward II 9.5
Forward III 20.2
Reverse I 4.8
Reverse II 9.5
Axle and tire
Type of main reducer Spiral bevel gear
Gear Ratio 1:6.17
Final reducer Chain driven
Chain gear Ratio 1: 2.17
Single tire load (F) 2700 kg
Front axle load (R) 2700 kg
Tire number(F+R) 5+6
Tire size 11.00-20-16
Working data
Max. operation weight 30000 kg
Min. operation weight 20000 kg
Average ground pressure 150-300 Kpa
Tyre pressure 200-800 Kpa
Roller width 2790 mm
Vertical oscillation ±100 mm
Brake system
Parking brake
Hand operated drum brake
(Oil cut off brake for SWP2030H)
Service brake
Air-over-hydraulic disc brake
(Hydraulic brake for SWP2030H)
Steering system
Type hydraulic steering
Working pressure 13MPa
Steering cylinder Φ90×50×260 mm
Min. steering radius 7500mm ( outer side)
Refill capacity
Hydraulic tank 67L
Gear box 10 L
Fuel tank 220L
Engine crank case 16L
Overall length 4878 mm
Overall width 2790 mm
Overall height  3103 mm
Wheel base 3800 mm
Tyre specification 11.00-20-16
Min. ground clearance 300 mm
