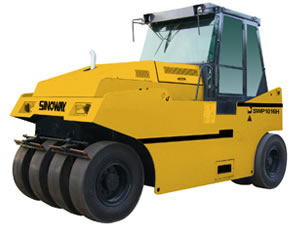

Main Specifications of SWP1016 Pneumatic Tire Roller (Mechanical Transmission)
| Engine | |
| Model | 4BT3.9 |
| Power rate | 75KW |
| Rated speed | 2400rpm |
| Type | Vertical water cooling four stroke direct injection |
| Rated fuel consumption | 200 g/kw·h |
| Traveling performance | |
| Grade ability | 20% |
| Traveling speed (km/h) | |
| Forward I | 4.8 |
| Forward II | 8.0 |
| Forward III | 16 |
| Reverse I | 4.5 |
| Reverse II | 10.9 |
| Axle and tire | |
| Type of main reducer | Spiral bevel gear |
| Gear Ratio | 1:6.17 |
| Final reducer | Chain driven |
| Chain gear Ratio | 1: 2.17 |
| Single tire load (F) | 1778 kg |
| Front axle load (R) | 1778 kg |
| Tire number(F+R) | 4+5 |
| Tire size | 11.00-20-16 |
| Working data | |
| Max. operation weight | 16000 kg |
| Min. operation weight | 10000 kg |
| Average ground pressure | 150-300 Kpa |
| Tyre pressure | 200-800 Kpa |
| Roller width | 2290 mm |
| Vertical oscillation | ±100 mm |
| Brake system | |
| Parking brake | Hand operated drum brake (Oil cut off brake for SWP1016H) |
| Service brake |
Air-over-hydraulic disc brake (Hydraulic brake for SWP1016H) |
| Steering system | |
| Type | hydraulic steering |
| Working pressure | 13MPa |
| Steering cylinder | Φ90×50×260 mm |
| Min. steering radius | 7500mm ( outer side) |
| Refill capacity | |
| Hydraulic tank | 67L |
| Gear box | 10 L |
| Fuel tank | 220L |
| Engine crank case | 16L |
| Dimensions | |
| Overall length | 4770 mm |
| Overall width | 2286 mm |
| Overall height | 3100 mm |
| Wheel base | 3700 mm |
| Tyre specification | 11.00-20-16 |
| Min. ground clearance | 300 mm |
