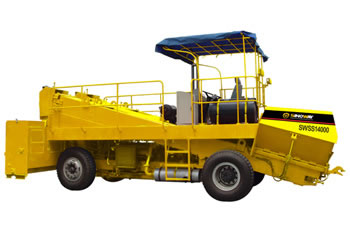

Description of Self-propelled Chip Spreader
Our self-propelled chip spreader, a kind of road construction machinery, is widely used for continuously spreading aggregate in the work of bituminous pavement construction and maintenance.
Features of Self-propelled Chip Spreader
1). The roller speed and spreading speed are proportionally controlled.
2). The belt speed and spreading speed are controlled proportionally for easy and continuous spreading.
3). Auger speed and roller speed is synchronized, in favor of conveying material and preventing unmixing.
4). During continuous spreading, easy connection and disconnection between spreader and dumper truck are available due to the self-locking traction hook.
5)Two independent braking systems to improve the safety of traveling
Technical Specification of Self-propelled Chip Spreader
Spreading Width | 250-4000mm |
Spreading Speed | 2.5-3.6km/h |
Max. Running Speed | 23 km/h |
Spreading Rate | 2-30 m3/km2 |
Aggregate Size | 3-40mm |
Engine | Water-cooled diesel engine Model WD615.50 Power rating:206kw Rated speed :2200 r/min |
