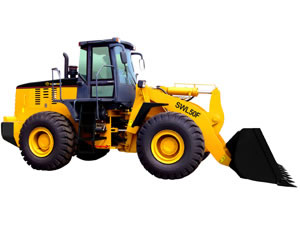

Main Specification of Wheel Loader
Overall Dimension | |
Length(with bucket on ground) | 8215(mm) |
Width(to outside of wheels) | 2800(mm) |
Bucket width | 2946(mm) |
Height(To the top of the cab) | 3450(mm) |
Wheel base | 3350(mm) |
Tread | 2200(mm) |
Min. ground clearance | 450(mm) |
Main Technical Specification | |
Rated load | 5000(Kg) |
Operating weight | 16300KG |
Rated bucket capacity | 3.0(m3) |
Max. breakout force | 160kN |
Max. dump clearance | 3050(mm) |
Dump reach | 1107(mm) |
Dump angle at any position | ≥450 |
Digging depth(with bucket bottom horizontal) | 165(mm) |
Min. turning radius | |
Outside of bucket | 6675(mm) |
Outside of rear wheel | 5879(mm) |
Pivot angle frame | 400 |
Oscillating angle of rear axle | +13o |
Lifting time of bucket | ≤5.8(sec.) |
Lowering time of bucket | ≤3.8(sec.) |
Dumping time | ≤1.2(sec.) |
Traveling speed(Km/h),3 forward and 3 reverse | |
1st gear | 7.05/9.0 |
2nd gear | 11.7/16.0 |
3rd gear |
