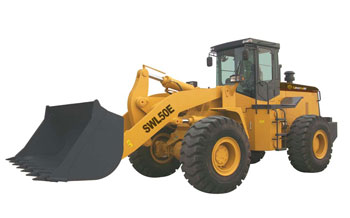

Main Specification of SWL50E Wheel Loader:
| Engine | |
| Model | 6CTA8.3 |
| Type | Vertical, water cooled, four-stroke, direct injection |
| Rated power | 160KW |
| Rated speed | 2,200rpm |
| Rated fuel consumption | 220g/Kw.h |
| Main Technical Specification | |
| Rated load | 5,000Kg |
| Operating weight | 16,200Kg |
| Rated bucket capacity | |
| Max. breakout force | 185kN |
| Max. dump clearance | 2,970mm |
| Dump reach | 1,200mm |
| Dump angle at any position | 45° |
| Digging depth（with bucket bottom horizontal） | 212mm |
| Min. turning radius | |
| -----Outside of bucket | 6300mm |
| -----Outside of rear wheel | 5795mm |
| Oscillating angle of rear axle | ±11° |
| Lifting time of bucket | ≤5.8s |
| Lowering time of bucket | ≤3.77s |
| Dumping time | ≤1.43s |
| Working Equipment | |
| Model of oil pump | JHP3100 |
| System pressure | 17Mpa |
| Model of multi-way directional valve | DF32.2C |
| Pilot valve | DJS2-UX/UU |
| Axle And Tyre | |
| Type of main reducer | Single stage |
| Gear ratio of main reducer | 4.625 |
| Type of final reducer | Column straight gear planet speed reducer |
| Gear ratio of final reducer | 4.94 |
| total ratio | |
