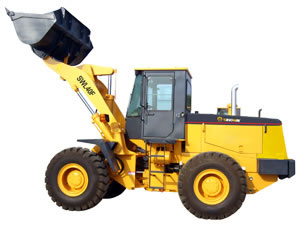

Main Specification of Wheel Loader
Overall Dimension | |
Length(with bucket on ground) | 7170(mm) |
Width(to outside of wheels) | 2570(mm) |
Bucket width | 2697(mm) |
Height(To the top of the cab) | 3360(mm) |
Wheel base | 3080(mm) |
Tread | 2050(mm) |
Min. ground clearance | 400(mm) |
Main Technical Specification | |
Rated load | 4000(Kg) |
Operating weight | 13800KG |
Rated bucket capacity | 2.3(m3) |
Max. breakout force | 134kN |
Max. dump clearance | 2815(mm) |
Dump reach | 1050(mm) |
Dump angle at any position | ≥45° |
Digging depth(with bucket bottom horizontal) | 190(mm) |
Max. turning radius | |
Outside of bucket | 6300(mm) |
Outside of rear wheel | 5730(mm) |
Pivot angle frame | 38+10 |
Oscillating angle of rear axle | +110 |
Lifting time of bucket | ≤6.2(sec.) |
Lowering time of bucket | ≤3.8(sec.) |
Dumping time | ≤1.8(sec.) |
Traveling speed(Km/h),2 forward and 1 reverse 190(mm) | |
1st gear forward | 11 |
2nd gear forward | 36 |
1st gear reverse |
