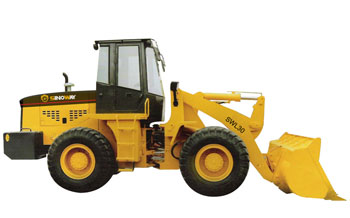

SWL30 Wheel Loader

SWL30 Wheel Loader
Original Image
Products Visitors:771
  • Product Name:SWL30 Wheel Loader
  • Model:SWL30


Main Specification of SWL30 Wheel Loader:

Engine
Model Cummins 6BT5.9-C130
Type Vertical, water cooled, four-stroke, direct injection
Rated power 92KW
Rated speed 2,200rpm
Rated fuel consumption 200g/Kw.h
Main Technical Specification
Rated load 3,000Kg
Operating weight 10,000Kg
Rated bucket capacity 1.7m3
Max. breakout force 100kN
Max. dump clearance 3,060mm
Dump reach 1,008mm
Dump angle at any position ≥45°
Digging depth (with bucket bottom horizontal) 210mm
