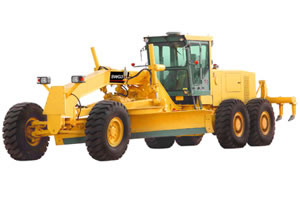

SWG315 Motor Grader

SWG315 Motor Grader
Original Image
Products Visitors:990
  • Product Name:SWG315 Motor Grader
  • Model:SWG315


Specification of Motor Grader:

Engine
Type QSM11(M11-C)Imports from The United States
Power rate 228kw/310ps
Rated speed 2100r/min
Max. torque 1215Nm
Max speed of torque 1500r/min
Operating Weight
Front axle    7200 kg/7800 kg(standard type/bearing back ripper)
Back axle 16800 kg/19700 kg(standard type/bearing back ripper)
Complete machine 24000 kg /27500kg(standard type/bearing back ripper)
Dimensions
Standard type  10520*3140*3700mm
Type bearing back ripper 12200*3140*3650mm
Traveling Speed
Traveling speed(km/h) Forward I 8.1
Traveling speed(km/h) Forward II 12.5
Traveling speed(km/h) Forward III 19.1
Traveling speed(km/h) Forward IV 27.1
Traveling speed(km/h) Forward V 40
Traveling speed(km/h) Reverse I 5.2
Traveling speed(km/h) Reverse II 12.5
Traveling speed(km/h) Reverse II 27.1
Transmission
Hinged rack angle 25°
Minimum turning radius 9.3m
Blade
length *height 4920*695mm
Max Grading depth 470mm
Max.blade angle left 800/right800
Blade cycling 3600
Cutting angle Forward400 Back50
Ripper
Width   2860mm
Max Grading depth 460mm
Amount of gear 3、5、7
Wheelbase between front axle and rear axle 7760mm
Wheel base 2494mm
Max traction force(φ=0.75) 141 kN /165kN(standard type/bearing back ripper)
Working Environment
height above sea level  3500m
air temperature  -28.5～+40.4℃
relative humidity
