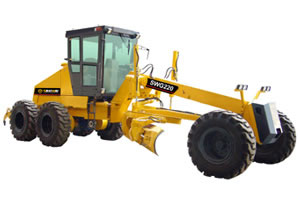

Specification of Motor Grader:
| Engine | |
| Brand | Cummins 6CT8.3-C215 |
| Power rate | 158KW |
| Rated speed | 2200rpm |
| Type | Direct injection, turbocharged, after cooling |
| Rated fuel consumption | 215 g/Kw. h |
| Transmission | |
| Type | 3 elements, single stage |
| Torque ratio | 1.5-3 |
| Cooling type | Oil cooling, pressure circulation |
| Gearbox type | Power shift |
| Gear shifts( Forward/reverse) | 5.2/5.2 |
| Traveling speed(km/h) Forward/Reverse I | 7.91/11.78 |
| Traveling speed(km/h) Forward/Reverse II | 11.78/24.81 |
| Traveling speed(km/h) Forward/Reverse III | 17.69 |
| Traveling speed(km/h) Forward/Reverse IV | 24.81 |
| Traveling speed(km/h) Forward/Reverse V | 36.85 |
| Traveling speed(km/h) Forward/Reverse VI | 3 elements, single stage |
| Axle | |
| Drive type | Four wheel drive(6X4) |
| Front axle ground clearance | 630 mm |
| Front wheel tilt | ±17º |
| Swing angle | ±15º |
| Drive axle | Three stages with No SPIN differential |
| Steering System | |
| Front wheel steering angle | 45º |
| turning radius | 10.4M(non tilted wheel) 10.9M (tilted wheel) |
| Articulated steering angle | 25º |
| Min. turning radius | 7800 mm |
| Drive type | Dual action cylinder |
| Working Equipment | |
| Control system | hydrostatic drive system |
| Hydraulic pump | Gear pump |
| Control valve | Two sets, five pieces per set |
| Control pressure | 18MPa |
| Hydraulic oil cylinder | Dual action cylinder |
| Max. traction force | 73.5KN |
| Max. Grading depth | 500 mm |
| Blade width | 3965 mm |
| Blade cycling | 360º |
| Max. blade angle | 90º(L/R) |
| Braking System | |
| Service brake | Hydraulic caliper disc brake actuate 4 rear wheels |
| Type | One-way loop with energy-storage reservoir |
| Parking brake | Hand operated hoop brake |
| Tandem Drive | |
| Type | Swing type with roller chain transmission |
| Speed ratio | 18.03 |
| Overall Dimension | |
| Overall length | 8585 mm |
| Overall width(wheel outside) | 2790 mm |
| Overall height | 3340 mm |
| Wheel base | 6362 mm |
| Front tread | 2150 mm |
| Rear tread | 2340 mm |
| Tyre specification | 17.5-25-RP14 |
| Rear tread | 2340 mm |
| Tyre specification | 17.5-25-RP14 |
| Refill Capacity | |
| fuel tank | 228L |
| Engine crank case | 23L |
| Hydraulic tank | 130L |
| Gear box | 21L |
| Rear axles | 28L |
| Balance box | 23L(each) |
| Worm gear case | |
