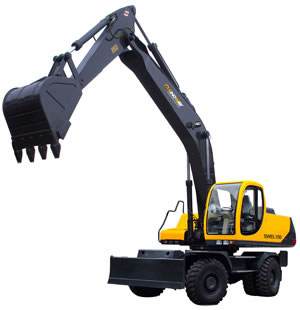

Specifications of Wheel Excavator / Wheel Digger
| Weight | |
| Operating Weight | 121t |
| Bucket Capacity | |
| Standard Bucket Capacity | 0.9M3 |
| Engine | |
| Engine Model | Cummins 6BT5.9-C152 |
| Engine Power | 108Kw |
| Hydraulic System | |
| Hydraulic Flow Rate | 2×195 L/min |
| Hydraulic Pressure Rate | 30 MPa |
| Traveling Parameter | |
| Travelling Speed | 28 km/h |
| Grade Climbing Capacity | 40% |
| Hydraulic System | |
| Slewing Speed | 14 r/min |
| Digging Force | |
| Stick Digging Force | 90KN |
| Bucket Digging Force | 120Kn |
| Dimension | |
| Overall Length | 9550mm |
| Overall Width | 2715mm |
| Overall Height of Boom | 3860mm |
| Overall Height of Cab | 3060mm |
| Engine Cover Height | 2630mm |
| Counterweight Clearance | 1360mm |
| Ground Clearance | 300mm |
| Upper structure Width | 2685mm |
| Rear-End Length/Swing Radius | 2845mm |
| Wheelbase | 2960mm |
| Overall Width of Blade | 2400mm |
| Overall Height of Blade | 630mm |
| Front Overhang | 1425mm |
| Overall Width With Outrigger Extended | 3780mm |
| Rear Overhang | 1904mm |
| Operating Scope | |
| Stick Length | 2600mm |
| Maximum Cutting Height | 9720mm |
| Maximum Dumping Height | 6725mm |
| Maximum Digging Depth | 6170mm |
| Maximum Reach | 9360mm |
