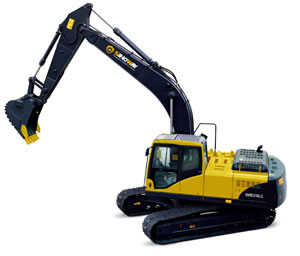

Specification of Crawler Excavator
Overall Dimension
Length(with bucket on ground) | 9760(mm) |
Width(600mm crawler shoes ) | 3000(mm) |
Ground length (in transportation) | 4510(mm) |
Height(To the top of the boom) | 3280(mm) |
Height(To the top of the cab) | 2775(mm) |
Counter weight ground clearance | 1060(mm) |
Track gauge | 2400(mm) |
Tail swing radius | 2940(mm) |
Min. ground clearance | 465(mm) |
Rotating platform width | 2710(mm) |
Counter weight clearance | 1060(mm) |
Crawler ground length | 3720(mm) |
overall length of crawler | 4510(mm) |
Reach from swing center to tail | 2940(mm) |
Standard arm length | 2900(mm) |
Operating weight | 21000KG |
Rated bucket capacity | 0.9 (m3) |
Max. breakout force | |
Bucket digging force | 120.5KN |
Arm crowding force | 97KN |
Max. digging height | 9228mm |
Max. dumping clearance | 6410(mm) |
Max. digging depth | 6540mm |
Max. digging reach | 10000(mm) |
Min. front swing radius | 2870mm |
Max. pulling force | 183KN |
Max. travel speed(double modes) | 5.3/3.2km/h |
Contact area pressure ratio | 41.83 Kpa |
Pressure of system | 30Mpa |
Max. grabble ability | 65° |
Model | Cummins 6BTA5.9-C173 |
Type | Water cooling .Direct injection. Turbocharged. |
Rated output | 126Kw/171HP @2150rpm |
Inter-bore of cylinder/stroke | 105/125(mm) |
Total exhaust of cylinder | 6.5(L) |
Power of start motor | 4.5(KW) |
Voltage of starting motor | 24(V) |
Rated speed | 2150(r/min.) |
Max. Torque | 583(N.m) |
Starting type | Electric |
Min. specific fuel consumption | 264(g/Kw.h) |
Net weight | 489(Kg) |
