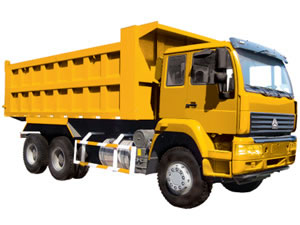

Main Specifications of Tipper (Dump Truck)
| Dimensions: | |
| Overall size(length×width×height) | 7934×2496×3170 |
| Cargobody size(length×width×height) | 5400×2300×1500 |
| Wheelbase | 3225+1350 |
| Wheel track(Front/Rear) | 2022/1830 |
| Minimum ground clearance | 298 |
| Weight: | |
| Kerb mass | 12850 |
| Payloading capacity | 25000kg |
| Gross vehicle weight | 25000 |
| Axle loading capacity(Front/Rear) | 10000/2×15000kg |
| Performance: | |
| Maximum driving speed | 75 km/h |
| Minimum turning circle | 17.8m |
| Maximum gradeability | 48 % |
| Approach angle | 19° |
| Departure angle | 22° |
| Fuel consumption | 33L |
| Engine | |
| Model | WD615.87 (Stery technology) |
| Type | w water-cooling, turbocharging and intercooling, Euro Ⅱ emission standard, direct injection diesel motor |
| Rated power | 290HP(213kw) |
| Maximum torque at 1300~1600rpm | 1100Nm |
| Displacement | 9728 ml |
| Fuel consumption ratio | 191 g/(KWh) |
| Driver's Cab | |
| HW70 cab, four point full-floating damper, hydraulically damped adjustable driver's seat & rigid adjustable co-driver's seat, heating & ventilation system, no-sleeper, air conditioner | |
| Transmission: | |
| Type | Fuller F9 RT11509G synchromesh, 9 forward & 1 reverse |
| Ratio | 12.11.8.08.5.93.4.42.3.36.2.41.1.76.1.32.1.00.12.66R |
| Steering: | |
| Type | ZF8098 hydraulic steering with power assistance |
| Ratio | 22.2～26.2 |
| Front axle | |
| HW08, Rigid stub axle with double T-cross section | |
| Rear axle | |
| Type | HC16 |
| Ratio | Ratio:5.73 |
| Clutch | |
| Single-plate dry coil-spring clutch, diameter 420, hydraulically operating with air assistance | |
| Brakes | |
| Service brake: dual circuit compressed air brake | |
| Parking brake: spring energy operating on rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Options: ABS | |
| Wheels rim& Tyres: | |
| Rims | 8.50-20 |
| Tyres | 12.0-20 |
| Electric System | |
| Operating voltage | 24V |
| Alternator | 1500W |
| Batteries | 24 V/135Ah |
| Fuel tank: | |
| capacity | 300L |
