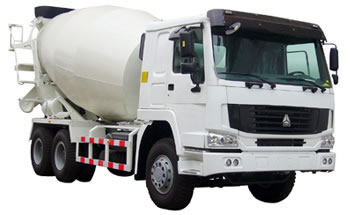

SWD5257GJB Concrete Mixing Truck

SWD5257GJB Concrete Mixing Truck
Original Image
Products Visitors:1004
  • Product Name:SWD5257GJB Concrete Mixing Truck
  • Model:SWD5257GJB


SWD5257GJB (H7/336/K36/6×4) Capacity 8m3 Mixer

Main Specifications of Concrete Mixing Truck (Engineering Machinery)

Dimensions (mm):

Overall size(length×width×height) 8715×2496×3850
 Capacity 8
Wheelbase 3625+1350
Wheel track(Front/Rear) 2022/1830
Minimum ground clearance 298
Weight(kg):
HW07, Rigid stub axle with double T-cross section
Kerb mass 13000
Payloading capacity 11870
Gross vehicle weight 25000
Axle loading capacity(Front/Rear) 7000/2×9000
Performance:
Maximum driving speed 90 km/h
Minimum turning circle 17.8 m
Maximum gradeability 50 %
Approach angle 19°
Departure angle 26°
Fuel consumption 30(L/100 km)
Engine:
WD615.69,water-cooling,turbocharging and intercooling, Euro
Ⅱ emission standard,direct injection diesel,silicone oil fan
Displacement 9726 ml
Maximum output at 2,200rpm 336HP(247kw)
Maximum torque at 1300~1600rpm 1350Nm
Fuel consumption ratio 193 g/(KWh)
Driver's Cab:
1. HW70 long cab;
2. Four point full-floating damper;
3. Hydraulically damped adjustable driver's seat & rigid adjustable co-driver's
seat;
4. Heating & ventilation system, no sleeper;

Transmission:
1. Fuller9, 9 forward&1 reverse;
2. Ratio: 12.11,8.08, 5.93,4.42,3.36,2.41,1.76,1.32,1.00,12.66R;

Steering:
ZF8098, hydraulic steering with power assistance
Ratio:22.2～26.2

Front axle:
HW07, Rigid stub axle with double T-cross section

Rear axle:
STR　Pressed axle housing, dual reduction with hub reduction and differential locks between axles and wheels, Ratio:5.73

Clutch:
Single-plate dry coil-spring clutch, diameter 420, hydraulically operating with air assistance

Brakes:
1. Service brake: dual circuit compressed air brake;
2. Parking brake: spring energy operating on rear wheels;
3. Auxiliary brake: engine exhaust brake,ABS, metal piping, self-correcting arm;

Wheels rim& Tyres:
Rims 8.50R20
Tyres 12.00R20
Electric system:
negative grounded
Operating voltage 24V
Alternator 1500W
Batteries 24 V/180Ah
Fuel tank:
Capacity 400 L
