Sinoway Industrial (Shanghai) Co., Ltd.

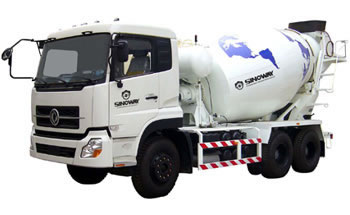

Description of Concrete Mixing Truck
1. Water Supplying Style: Pressured-Air Water Supplying System.
2. The adoption of international brand air pressuring system units, coupled with the reliable and safe water tank and super volume, this system has the features of high pressure, big flowing-volume.
3. This type of engineering vehicle is mainly used to transport and mix concrete from a factory to the construction yard.
Main Specifications of Concrete Mixing Truck
Vehicle Model | SWD5251GJB Concrete Mixer Truck (8cubage) |
Engine | Cummins |
Chassis Model | DFL3250A1 |
Overall Dimensions | 8840*2500*3930 mm |
G.V.W | 25000 kg |
Curb Weight | 13000 kg |
Rated loading capacity | 11805 kg |
Front/Rear Suspension | 1460/2380 mm |
Wheel Base | 3500+1350,3650+1350 |
Approach/departure angle | 25/18° |
Fuel Consumption | 32L/km |
Electric System | 24v |
Number of Tire | 10 |
Exhaust/hp | 8300/239ml/KW |
Allowable Passengers in cab | 3 |
Max Speed | 80 km/h |
Clutch plate | ¢395mm |
Mixer Cubage | 8000L |
Mixing Container Obliquity | 13° |
Speed of Concrete Outlet | 2M3/min |
Speed of Concrete Inlet | 3 M3/min |
Remainder Rate | <0.9% |
Filling Rate | 58.01% |
Tire Specification | 11.00-20 |
Engine Type | CumminsC325 20 |
Traction System | 6×4 |
Transmission | RT-11509C 9-gear |
Hydraulic System | Oil Pump Model American ACA5423-518 |
