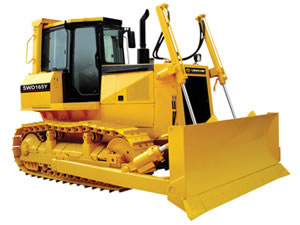

Main Specifications of Bulldozer
Overall dimensions (L × W × H) | 5416 × 3297 × 3160 mm (straight) : 5566 × 3726 × 3160 mm (angle) |
Operation weight | 17.8t(straight);18.2t(angle ) |
Flywheel power: | 121kW |
Max. drawbar pull | 139.6 kN ( straight ); 142.7kN ( angle ) |
Ground pressure (at operating weight): | 69KPa |
Min. ground radium: | 3.9 m |
Min. ground clearance | 352.5 mm |
Grade ability: | Straight 30 °Side 25 ° |
Diesel engine | |
Model | WD615T1-3B |
Type: | straight line, water-cooled, with four stroke, pressure boost and direct injection |
Cylinders Number-bore diameter × travel distance | 6-126x 130mm |
Displacement: | 9.726 L |
Rated RPM | 1800 r/min |
Rated power: | 130 kW |
Max. torque | 870 N · m/1200-1300 rpm |
Fuel consumption (at rated working condition) | 225 g /kW · h |
oil consumption: | 1.8 g /kW · h |
Admissible altitude | ≤ 4000m |
Cooling method: | closed circulation water cooled |
Starting method | electrically starting at 24V pressure |
