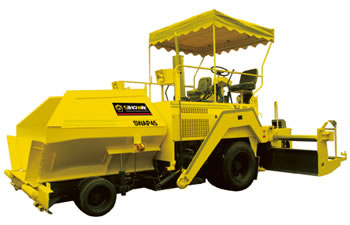

SWAP45 Wheel Asphalt Paver

SWAP45 Wheel Asphalt Paver
Original Image
Products Visitors:994
  • Product Name:SWAP45 Wheel Asphalt Paver
  • Model:SWAP45


Description of Wheel Asphalt Paver

1. Compact structure, easy operation;
2. Adopt advanced double sets of hydraulic stretching screed and auto level sensing device;
3. High paving density and smoothness;
4. The easily wearing parts adopt internationally advanced antifriction material;

Main Features of Wheel Asphalt Paver

1. 46Kw DEUTZ engine with air cooling, strong power, good reliability, and start ability in low temperature environment;
2. Independent and easy operation for L/R conveyor and auger, auger is stretched by mechanical to ensure the spreading;
3. All controlling components centralize on the control panel, easy to operate; control panel can be moved to the L/R on requirement.
4. Automatic leveling device satisfies the grade criterion of freeway in the range of grade of 3mm/3m and slope of 2/1000.
5. Iron plate can be stretched to conveniently change the width of paving layer.
6. Cutting-edge technique of electric system, all the controlled components connected to wire are in accordance with code.

Applications of Wheel Asphalt Paver

This asphalt paver, a kind of road surfacing machine, is used for paving road, urban road, and plaza; square and so on.

Main Specification of Wheel Asphalt Paver

Performance parameter
Basic paving width 2500mm
Maximum width of paving
Maximum thickness of paving   		4500mm
250mm
Minimum thickness of paving 10mm
Traveling speed 2.29~16.74km/h
Paving speed 3.01~8.97m/min
Maximum theoretic productivity 220t/h
Hopper capacity  10t
Maximum climbing capacity load 10%  unload 15%
Mass 11000kg
Overall size
Length   850mm (transportation 5550mm)
Width    3000mm (transportation 2494mm)
Height  2450mm
Engine
Model  F4L912
Type Air cooling with 4 cylinders
Power 46Kw/2000r/min
Diesel oil tank capacity  143L
Drive system
The machine is driven by mechanical and hydraulic, flywheel is connected to transfer case, the front is connected to double pump, supplying power for mechanism below:
Traveling device:          Conveyor and auger spreading device
Vibrating:                Up and down of screed, turnover of hopper and action of cylinders
Traveling device
It is made up of transfer case, gear box with two grades, differential mechanism, semi-axle and chain drive. Traveling is driven by driven chain wheel.
Load mode
6 tyres, the front tyres are solid, the rear tyres are pneumatic
Steering
Steering mechanism use mode of bridge, center of bridge which is able to revolving is connected to center of frame, redirectors are fixed on the two ends of the axle, redirectors are revolved by hydraulic cylinder, and so solid tyre can be revolved corresponding angle.
Hopper
Hopper capacity is about 10 tons; hopper is turned by hydraulic cylinder to discharge material.
Roller
It is used to push the rear tyre of camion.
Conveyor
It is independently driven, clutch for conveyor is controlled by hydraulic cylinder, power is transferred by chain-wheel to drive scraper.
Electric system
It has 2 batteries, system voltage is 24V.
Cab
It used framework of steel tubes which are put together and equipped canopy.
Automatic level device
It is equipped one slope and one grade Automatic level device, used for automatic adjustment of slope and grade.
Working device
Double sets of hydraulic stretching iron plate
Basic width of iron plate 2500mm
Hydraulic Extension width of iron plate 1000mm each side
Arch adjustment 0~4%
Vibrating frequency 50HZ
