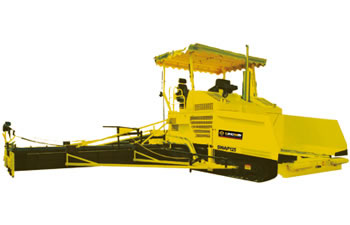

Description of Versatile Paver
1. A paver, also known as paver finisher or asphalt finisher, is an engineering vehicle (engineering equipment) used to lay asphalt on roadways;
2. Be suitable for either soil stabilized cement and lime base material or asphalt concrete;
3. Whole hydraulic drive, central control system, electric control motor, ultrasonic sensor control;
4. With constant speed control, auto steering, self exam fault, color display function;
5. Use wearable material to secure the performance;
Specification of Versatile Paver
Performance |
Basic paving width |
3000mm |
Max. paving width |
12500mm |
Paving depth |
20-320mm |
Travel speed |
0-3.2km/h |
Paving speed |
0-16m/min |
Flatness |
σ≤1.2mm (asphalt)
6mm/3m ruler (stabilized soil) |
Crown |
-1~3% |
Max. theoretical capacity |
800t/h |
Hopper capacity |
14t |
Max climb ability |
20% |
Overall size |
Machine length |
6314mm |
Machine width |
3182mm |
Machine height |
3848mm |
Engine |
Model |
F4AE0684BD1 |
Cooling Medium |
Water cooled |
No. Of Cylinders |
6 cylinders |
Output |
169kW |
Rated Engine |
2300rpm |
Fuel tank capacity |
345L |
Driving system: whole hydraulic drive, engine connect transmission case to drive all pumps for the following items:
1.Traveling devices
2.Feeding devices and auger
3.Screw conveying
4.Tamper and vibrating
5. Lifting screed folding hopper and operate cylinder
Traveling device: two side crawler devices are independent hydraulic drive, controlled by micro computer.
Bearing mode: two crawlers bear the weight of the whole machine, and the patch area of every crawler is 3427×320mm
Parking brake: hydraulic NC disc brake was installed in two planet reducer for parking.
Steering: The traveling clutch is controlled by hydraulic cylinder through potentiometer, so it can rotate with the brake.
Hopper: The capacity is 14 tons and controlled by hydraulic cylinder.
Push roller: It is used to pull the back wheels of the truck.
Conveyor system: There are two conveyors on left and right, through pump, motor, reduction device and chain drive, controlled by supersonic material sensor. 0-115 r/min, setpless speed control. Conveyor system consists of pump motor reduction device and chain supersonic material sensor .
Control software: MC400, S11 controller, 24V DC supplied by two batteries is in charge of the whole circuit.
Canopy: It is consisted of steel tube and cloth.
Automatic leveling units:It has longitudinal and one piece of transverse equipment, Ultrasonic NC multi probe auto leveling unit, imported from USA.
Working devices: Mechanical extended screed, gas heating, bottom use imported steel
1.Screed |
basic width |
3000mm |
|
Crown of max paving |
-1~3% |
2.Double tamper |
times |
0~1500/min |
|
Distance |
main 5mm |
|
Subaltern |
0.3.6.9.12mm |
|
Pressure |
30MPa |
3.Vibrating |
frequency |
0~50Hz |
|
Pressure |
20MPa |
4. screed extension |
1.5m |
4 pieces |
|
1 m |
2 pieces |
|
0.5m |
2 pieces |
|
0.25m |
2 pieces |
SWAP125H Versatile Paver Imported Components
1. Italy IVECO company F4AE0684BD1engine;
2. Micro processor use USA Sauer MC400、S11 controller;
3. Color display use USA Sauer
4. Pump, motor use USA Sauer;
5. Auger reducer use Italy RR;
6. Auto leveling unit use USA TSD;
7. Hydraulic hose use USA Paker;
8. Hydraulic sub component use Germany HYDAC;
9. Central lubrication device use Germany BEKA-MAX;
10. Control switch, connection use Germany.
