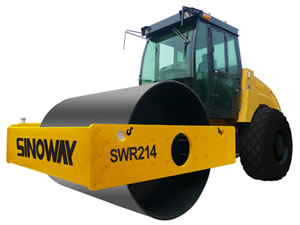

Main Specifications of Single Drum Vibrating Roller (Mechanical Transmission)
Engine | |
Model | YC6108G |
Power rate | 85KW |
Rated speed | 2000rpm |
Type | Vertical water cooling four stroke direct injection |
Rated fuel consumption | 215 g/kw·h |
Traveling performance | |
Grade ability | 35% |
Traveling speed (km/h) | |
Forward I | 2 |
Forward II | 4 |
Forward III | 11 |
Axle | |
Drive type Rear wheel drive | |
Front axle load | 5600 kg |
Rear axle load | 8400 kg |
Working equipment | |
Type | Hydraulic vibration |
Frequency | 30 Hz |
Amplitude | 1.7/0.8 mm |
Static linear load | 325 N/cm |
Dynamic linear load | 520N/cm |
Vertical oscillation | 10º |
Drum shell thickness | 24 mm |
Centrifugal force(high ampl.) | 290 KN |
Centrifugal force(low ampl.) | 160 KN |
Brake system | |
Parking brake | Hand operated drum brake |
Service brake | Disc brake actuate rear wheels |
Steering system | |
Type | Articulated frame hydraulic steering |
Steering cylinder | Two cylinders |
Steering pump | Gear pump |
Working pressure | 12MPa |
Steering angle | ±36º |
Min. steering radius | 7000mm ( outer side) |
4870mm(inner side) | |
Refill capacity | |
Hydraulic tank | 140L |
Gear box | 25L |
Drive axle | 25L |
Brake booster | 10L |
Fuel tank | 180L |
Engine crank case | 16L |
Dimensions | |
Overall length | 5800 mm |
Overall width | 2290 mm |
Overall height | 2979 mm |
Drum width | 2130 mm |
Wheel base | 3080 mm |
Drum Dia | 1500 mm |
Tyre specification | 23.1-26 |
Min. ground clearance | 410 mm |
