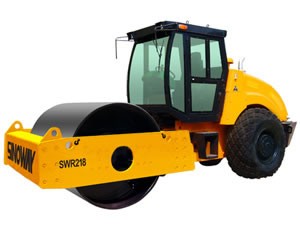

Road Roller SWR218

Products Visitors:2147
  • Product Name:Road Roller SWR218
  • Model:SWR218

SWR218Single Drum Vibrating Roller (Mechanical Transmission)

Main Specifications

Engine
Model D6114ZG
Power rate 132KW
Rated speed 2000rpm
Type Vertical  water cooling  four stroke  direct injection
Rated fuel consumption 215 g/kw·h
Traveling performance
Grade ability 35%
Traveling speed (km/h)
Forward I 2
Forward II 4
Forward III 10.5
Axle
Drive type Rear wheel drive
Front axle load 10800 kg
Rear axle load 7200 kg
Steering system
Type Articulated frame  hydraulic steering
Steering cylinder Two cylinders
Steering pump Gear pump
Working pressure 13MPa
Steering angle ±36º
Min. steering radius 7500mm ( outer side)
  5400mm (inner side)
Dimensions
Overall length 5820 mm
Overall width 2298 mm
Overall height 3050 mm
Drum width 2130 mm
Wheel base 3160 mm
Drum Dia 1570 mm
Tyre specification 23.1-26
Min. ground clearance 432 mm
Brake system
Parking brake Hand operated drum brake
Service brake Disc brake
  actuate rear wheels
Working equipment
Type Hydraulic vibration
Frequency 30 Hz
Amplitude 2.0/1.0 mm
Static linear load 415 N/cm
Dynamic linear load 577 N/cm
Vertical oscillation 10º
Drum shell thickness 30 mm
Centrifugal force(high ampl.) 340 KN
Centrifugal force(low ampl.) 260 KN
Refill capacity
Hydraulic tank 150L
Gear box 25L
Drive alxe 25L
Brake booster 10L
Fuel tank 180L
Engine crank case 19L
