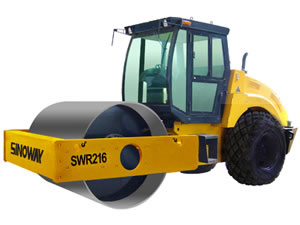

Road Roller SWR216

Products Visitors:1580
  • Product Name:Road Roller SWR216
  • Model:SWR216

SWR216Single Drum Vibrating Roller (Mechanical Transmission)

Main Specifications

Engine
Model YC6108ZG
Power rate 110KW
Rated speed 2000rpm
Type Vertical water cooling four stroke direct injection
Rated fuel consumption 215 g/kw·h
Traveling performance
Grade ability 35%
Traveling speed (km/h)
Forward I 2
Forward II 4
Forward III 10.5
Axle
Drive type Rear wheel drive
Front axle load 6400 kg
Rear axle load 9600 kg
Working equipment
Type Hydraulic vibration
Frequency 30 Hz
Amplitude 1.8/0.9 mm
Static linear load 325 N/cm
Dynamic linear load 530 N/cm
Vertical oscillation 10º
Drum shell thickness 30 mm
Centrifugal force(high ampl.) 320 KN
Centrifugal force(low ampl.) 180 KN
Brake system
Parking brake Hand operated drum brake
Service brake Disc brake
actuate rear wheels
Steering system
Type Articulated frame  hydraulic steering
Steering cylinder Two cylinders
Steering pump Gear pump
Working pressure 13MPa
Steering angle ±36º
Min. steering radius 7500 mm (outer side)
  5400 mm (inner side)
Refill capacity
Hydraulic tank 150L
Gear box 25L
Drive axle 25L
Brake booster 10L
Fuel tank 180L
Engine crank case 18L
Dimensions
Overall length 5820 mm
Overall width 2290 mm
Overall height  3000 mm
Drum width 2130 mm
Wheel base 3160 mm
Drum Dia 1570 mm
Tyre specification 23.1-26
Min. ground clearance 430 mm
