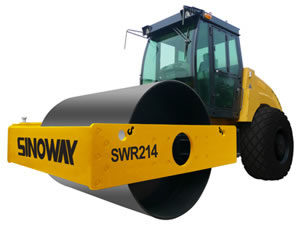

Main Specifications of SWR214H Single Drum Vibrating Roller (Hydraulic Transmission)
| Engine | |
| Model | 6BT5.9 |
| Power rate | 110 KW |
| Rated speed | 2000rpm |
| Type | Vertical water cooling |
| four stroke | direct injection |
| Rated fuel consumption | 210g/kw·h |
| Traveling performance | |
| Grade ability | 35% |
| Traveling speed (km/h) | 0-11 |
| Axle | |
| Drive type | Dual wheel drive |
| Front axle load | 8400 kg |
| Rear axle load | 5600 kg |
| Steering system | |
| Type | Articulated frame hydraulic steering |
| Steering cylinder | Two cylinders |
| Steering pump | Gear pump |
| Working pressure | 13MPa |
| Steering angle | ±35º |
| Min. steering radius | 7500mm(outer side) |
| 5400mm(inner side) | |
| Dimensions | |
| Overall length | 5820 mm |
| Overall width | 2278 mm |
| Overall height | 3050 mm |
| Drum width | 2130 mm |
| Wheel base | 3160 mm |
| Drum Dia | 1570 mm |
| Tyre specification | 23.1-26 |
| Min. ground clearance | 472 mm |
| Brake system | |
| Parking brake | Hand operated drum brake |
| Service brake | Oil-cut off braking |
| Working equipment | |
| Type | Hydraulic vibration |
| Frequency | 28/35 Hz |
| Amplitude | 1.7/0.78 mm |
| Static linear load | 400 N/cm |
| Dynamic linear load | 538 N/cm |
| Drum shell thickness | 30 mm |
| Centrifugal force(high ampl.) | 290 KN |
| Centrifugal force(low ampl.) | 180 KN |
| Traveling pump | 90R075 |
| Drive motor (F/R) | MK18/51D110 |
| Working pressure | 42Mpa |
| Refill capacity | |
| Hydraulic tank | 180L |
| Drive axle central gear box | 25L |
| Fuel tank | 200L |
| Engine crank case | 19L |
