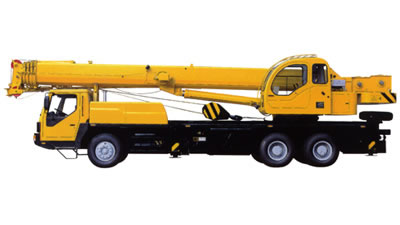

QY30K5 Truck Crane

Products Visitors:3137
  • Product Name:QY30K5 Truck Crane
  • Model:QY30K5


Main Features of Truck Crane

1. Machine appearance: harmony, smooth and nice.
2. Self-made special truck crane chassis: with strong-power and nature-friendly engine.
3. Five-section octagonal all-round telescopic boom: strong lifting capacity.
4. Large box type frame: high torsion resistance, wide outrigger span.
5. Various operating modes to extend the use of crane operation.
6. Newly-designed boom system, streamlined boom head and built-in slider.
7. The main winch uses dual variable displacement system.
8. Well-equipped safely protection device.
9. Ergonomically-designed drivers cab and the operators cab accord ISO standard, and air-conditioner in crane superstructure and carrier.

Applications of Truck Crane

This kind of engineering equipment is suitable for lifting and installation job in construction site, mine, factory and dockside. Optional mechanical grab is available for earth moving and stacking work.

Main Specifications of Truck Crane

Outline dimension
Overall length 12610 mm
Overall width ≤2500 mm
Overall height 3280 mm
Wheel base:Axle 1, Axle 2 1520 mm
Wheel base:Axle 2, Axle 3 3815 mm
Wheel base:Axle 3, Axle 4 1350 mm
Mass
Total mass in travel state 32300kg
Axle load: Front axle 11150kg
Axle load: Rear axle 21120kg
Travel performance
Max. travel speed 72 km/h
Min. stable travel speed 3 km/h
Turning diameter: Min. turning diameter 22m
Turning diameter: Min. turning diameter at boom tip 25m
Min. ground clearance 260mm
Approach angle 16°
Departure angle 15°
Braking distance (at 30km/h with full load) 10m
Max. grade-ability 30%
Fuel consumption for 100km 36L
Engine
Model WD615.67A
Rated power 206/2200 kW/(r/min.)
Rated torque 1100/1400 N.m/(r/min.)
Rated rotation 2200rpm
Lifting performance
Max. total rated lifting capacity 35t
Min. rated working radius 3m
Turning radius at turntable tail ≤3.055m
Max. load moment : Base boom 1166 kN.m
Max. load moment : Fully extended boom 645 kN.m
Max. load moment  Fully extended boom + Jib 475 kN.m
Outrigger span: Longitudinal 5.35m
Outrigger span: Lateral 6.0m
Lifting height : Base boom 10.5m
Lifting height : Fully extended boom 33m
Lifting height : Fully extended boom + Jib 48m
Working speed
Boom raising time 80s
Boom full extension time 100s
Max. swing speed 2.0 r/min
Main winch (full load )Hoist speed ≥85 m/min
Main winch (no load)Hoist speed ≥100 m/min
Aux winch (full load )Hoist speed ≥80 m/min
Aux winch (no load)Hoist speed ≥100 m/min
Noise limit: Crane exterior noise ≤118 dB (A)
Noise limit: At seated position ≤90 dB (A)
