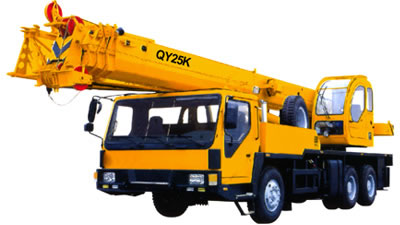

QY25K Truck Crane

Products Visitors:1492
  • Product Name:QY25K Truck Crane
  • Model:QY25K


Main Features of Truck Crane

1. Its profile and hydraulic system has won 6 China state patents;
2. 4-section boom of all-round octagonal boom profile, single cylinder for front support elevation, low center of gravity, good stability;
3. Main and auxiliary winches are independent from each other.
4. Full-width driver's cab with wide vision is convenient to operate.
5. Swing system with free-sliding function automatically aligns to load.
6. New materials are used to minimize the vehicle total weight and maximize the whole vehicle performances.
7. Hydraulic pilot control system completes all operations precisely with softly pushing the two joysticks on armrest.
8. Hydraulic valve block has an integrated modular design, resulting in little pressure loss and high work efficiency.
9. Combines cutting-edge technology to design the counterbalance valve.
10. Well-equipped safety devices make operation safer.

Applications of Truck Crane

Truck crane, a kind of ideal engineering equipment, is suitable for lifting and installation job in construction site, mine, factory and dockside. Optional mechanical grab is available for earth moving and stacking work.
Main Specifications of Truck Crane

Overall dimension
Overall length 12360mm
Overall width 2500mm
Overall height 3380mm
Wheel base: Axle 1, Axle 2 4125mm
Wheel base: Axle 2, Axle 3 1350mm
Mass
Total mass in travel state 24600kg
Axle load: Axle 1 6100kg
Axle load: Axle 2, Axle 3 21800kg
Travel performance
Travel speed: Max. travel speed 72km/h
Travel speed: Min. stable travel speed 3km/h
Turning diameter: Min. turning diameter 22m
Turning diameter: Min. turning diameter at boom tip 24m
Min. ground clearance 260mm
Approach angle 16°
Departure angle 13°
Braking distance (at 30km/h with full load) 10mm
Max. grade-ability 27%
Fuel consumption for 100km 35L
Engine
Model D6114ZLQ5B
Rated power 158/2200 kW/(r/min.)
Rated torque 790/1400 N.m/(r/min.)
Rated speed 2200 rpm.
Lifting performance
Max. total rated lifting capacity 25t
Min. rated working radius 3m
Turning radius at turntable tail 3.m
Max. load moment: Base boom 948 kN.m
Max. load moment: Fully extended boom 521 kN.m
Max. load moment: Fully extended boom + Jib 331 kN.m
Outrigger span: Longitudinal 4.8m
Outrigger span: Lateral 6m
Lifting height: Base boom 10.5m
Lifting height: Fully extended boom 32.5m
Lifting height: Fully extended boom + Jib 40.8m
Working speed
Boom raising time 75s
Boom full extension time 100s
Max. swing speed 2.5r/min
Main winch (full load )Hoist speed ≥70 m/min
Main winch (no load)Hoist speed ≥100 m/min
Aux winch (full load )Hoist speed ≥60 m/min
Aux winch (no load)Hoist speed ≥100 m/min
Noise limit: Crane exterior noise ≤118 dB (A)
Noise limit: At seated position ≤90 dB (A)
