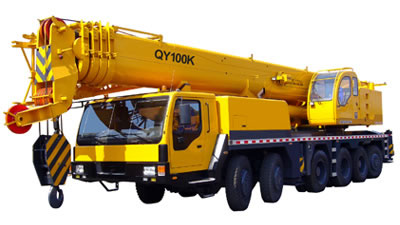

QY100K Truck Crane

Products Visitors:1564
  • Product Name:QY100K Truck Crane
  • Model:QY100K


Features of Truck Crane

1. Compact structure, reasonable arrangement, wide outrigger span, and 360º boom operation;
2. Six-axle off-road carrier equipped with imported Cummins engine and automatic transmission, max. grade-ability of 40%; maneuverable steering system, good pass-ability, min. turning diameter of 24m;
3. For this kind of construction machinery, integrated PLC controls lifting operation;
4. Electric control outriggers leveled by button;
5. Five-section boom of oviform boom profile, special blocks and aligning devices and imported high-tension steel plates;
6. EuroⅡengine is available for long-time continuous work;
7. Self-erecting counterbalances;
8. Hydraulic system is a constant power and variable displacement system of energy saving and high efficiency;
9. Comfortable operator's cab;
10. Employ new technology such as self-erecting combined counterweight, tilt-able operator's cab;
11. Optional automatic lubricating device;
12. Other optional parts such as jib, single top, anti-ultraviolet rays glazing, and radio-cassette player in operator's cab are available;

Applications of Truck Crane

This kind of engineering equipment is widely used for lifting operation and installation work in plants, mines, ports, construction sites, etc.

Main Specifications of Truck Crane

Outline dimension
Overall length 15230mm
Overall width 3000mm
Overall height 3860mm
Mass
Total mass in travel state 65000kg
Travel performance
Max. travel speed 75km/h
Min. stable travel speed 0.5km/h
Min. turning diameter 24m
Min. turning diameter at boom tip 26.6m
Power ratio 7.3Kw/t
Min. ground clearance 310mm
Approach angle 23°
Departure angle 15°
Braking distance (at 30km/h) ≤10m
Max. grade-ability 40%
Engine
Rated power 324/1800 kW/(r/min.)
Rated torque 2100/1200 N.m/(r/min.)
Lifting performance
Max. total rated lifting capacity 100t
Min. rated working radius 3m
Max. load moment: base boom 3238 kN.m
Max. load moment: fully extended boom 1670 kN.m
Max. load moment : fully extended boom + Jib 1127 kN.m
Outrigger span: longitudinal 7.56m
Outrigger span: lateral 7.6m
Lifting height: base boom 12.8m
Lifting height: fully extended boom 48m
Lifting height: fully extended boom + Jib 48 + 18.1m
Jib offset angle 0°, 15°, 30°
Working speed
Boom elevating time: boom raising 60s
Boom telescoping time: full extending / full retracting 140s
Max. swing speed 2rpm
Hoist speed (single line at 4th layer): main winch 110 m/min
Hoist speed (single line at 4th layer): aux. winch 85 m/min
