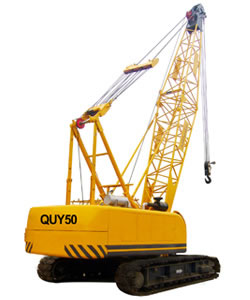

Main Features of Crawler Crane
1. Hydraulic drive, full swing and lattice boom;
2. The first one to adopt pilot proportional control in China domestic crawler cranes.
3. Easy in operation, stable in travelling and reasonable in structure.
4. The maximum lifting capacity: 50t, boom length: 13m~52m, jib length: 9.15m~15.25m.
Applications of Crawler Crane
This kind of engineering equipment is suitable for lifting and installation job in construction site, mine, factory and dockside. Optional mechanical grab is available for earth moving and stacking work.
Main Specifications
Max. lifting capacity | |
Boom | 50t |
Jib | 4t |
Lifting performance | |
Max. load moment | 1815 kN.m |
Boom length | 13~52m |
Boom elevating angle | 0~80° |
Fixed jib length | 9.15~15.25m |
Fixed jib offset | 10°,30° |
Working speed | |
Max. single line hoist speed( at 4th layer with no load) | 65 m/min |
Max. single line elevating speed( at 4th layer with no load) | m/min |
Max. swing speed | 1.5 r/min |
Travel performance | |
Max. travel speed | 1.1 km/h |
Max. grade-ability | 40% |
Mean ground pressure | 0.069 MPa |
Engine | |
Model | D6114ZG5B |
Engine output | 115kw |
Weight | |
Total mass (main hook block, 13m boom) | 48.5t |
Max. weight of base machine for transport | 31t |
Overall dimension | |
Max. dimension of base machine for transport (L×W×H) | 11.5m*3.4m*3.4m |
