QUY150 Crawler Crane

Products Visitors:1873
  • Product Name:QUY150 Crawler Crane
  • Model:QUY150

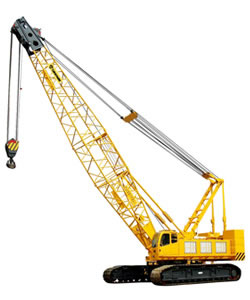

QUY150 Crawler Crane

Main Features of Crawler Crane

1. Independently developed based on foreign advanced technology.
2. The state-of-the-art crane design emphasizing on both reliability and appearance.
3. Power, drive and hydraulic components as well as steel plate and wire ropes adopt renowned enterprises.
4. Automatic assembly and disassembly are available for this crane, which is easy for transport and work-site transfer. Thereby it has become an ideal engineering vehicle for China domestic conditions and international markets.

Applications of Crawler Crane
This kind of engineering equipment is suitable for lifting and installation job in construction site, mine, factory and dockside. Optional mechanical grab is available for earth moving and stacking work.

Main Specifications

Max. lifting capacity
Boom 150t
Jib 15t
Lifting performance
Max. load moment 8240 kN.m
Boom length 19~82m
Boom elevating angle -3°~82°
Fixed jib length 12~30m
Fixed jib offset 10°、30°
Working speed
Max. single line hoist speed (at 5th layer with no load) 100 m/min
Max. single line hoist speed (at 5th layer with no load) 30 m/min
Max. swing speed 1.5rpm
Travel performance
Max. travel speed 1.0km/h
Max. grade-ability 30%
Mean ground pressure 0.093Mpa
Engine
Model VolvoTAD941VE
Rated power 231Kw
Weight
Total mass (main hook block,19m boom) 150t
Max. base machine weight for transport 46.0t
Overall dimension
Max. base machine dimension for transport (L×W×H) 11.5m×3.30m×3.30m
