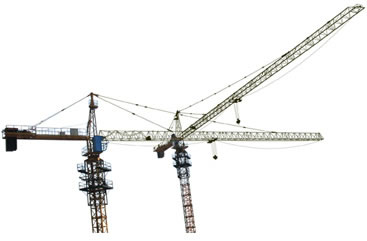

Description of Tower Crane
1. The traveling mechanism of this track type crane is mounted on guide track basing on the cross beam of stationary tower crane.
2. As a modern form of balance crane, this engineering vehicle often gives the best combination of height and lifting capacity and is commonly used in the construction of tall buildings.
Main Specifications of Tower Crane
Model | QTZ63 | QTZ63C |
Amplitude(M) | 50 | 52 |
In-dependent height(M) | 41 | 40 |
Max.height(M) | 141 | 140 |
Max.lifting capacity(T) | 6 | 6 |
Assistant support frame | 4 | 5 |
Main material | 135*135*10 | ∠160*16 |
(square steel tube) | Reinforcing mast section | |
135*135*12 | ∠160*14 | |
Reinforcing mast section | ||
Standard unit section | ||
Dimension | 1.835*1.835*2.5 | 1.615*1.615*2.5 |
Lifting speed(a=2)m/min | 80/40/8.5 | 80/40/8.5 |
Slewing speed( r/m) | 0.64 | 0.64 |
Trolley travel speed(m/min) | 42/21 | 42/21 |
Under-carriage form | 1 Cross beam slanting strut with-ballast type |
1 Cross beam slanting strut with-ballast type |
2 cross beam slanting beam with-no-ballast type |
2 cross beam slanting beam with-no-ballast type |
|
3 #-shape beam with-no- ballast type |
3 #-shape beam with-no- ballast type |
|
Model | QTZ100A(5515) | |
Amplitude(M) | 55 | |
In-dependent height(M) | 50/50 | |
Max.height(M) | 180 | |
Max.lifting capacity(T) | 8 | |
Assistant support frame | 4 | |
Main material | 135*135*12 | |
(square steel tube) | ||
Standard unit section | ||
Dimension | 1.835*1.835*2.5 | |
Lifting speed(a=2)m/min | 100/50 | |
Slewing speed( r/m) | 0.55 | |
Trolley travel speed(m/min) | 60/30/10 | |
Under-carriage form | 1 Cross beam slanting strut with-ballast type | |
2 cross beam slanting beam with-no-ballast type | ||
3 #-shape beam with-no-ballast type |
